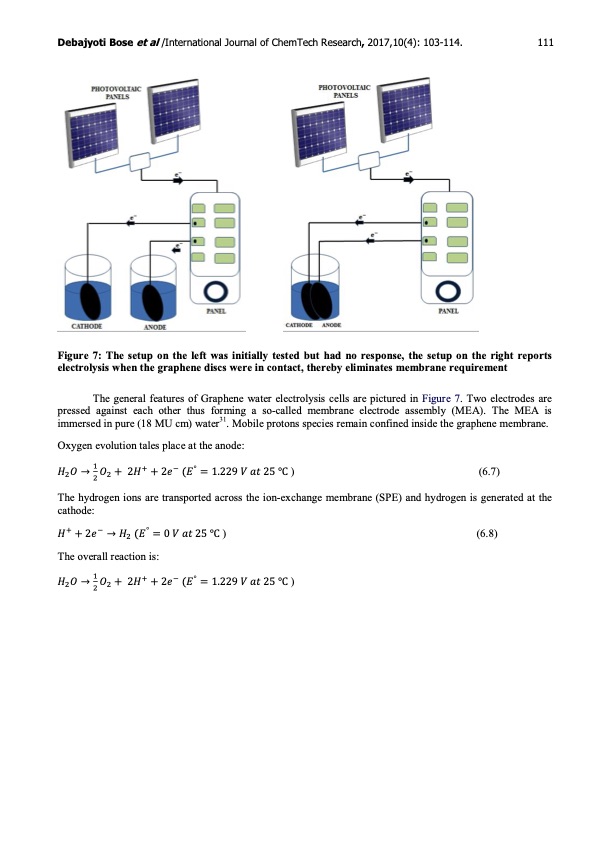

Debajyoti Bose et al /International Journal of ChemTech Research, 2017,10(4): 103-114. 111 Figure 7: The setup on the left was initially tested but had no response, the setup on the right reports electrolysis when the graphene discs were in contact, thereby eliminates membrane requirement The general features of Graphene water electrolysis cells are pictured in Figure 7. Two electrodes are pressed against each other thus forming a so-called membrane electrode assembly (MEA). The MEA is immersed in pure (18 MU cm) water31. Mobile protons species remain confined inside the graphene membrane. Oxygen evolution tales place at the anode: ) (6.7) The hydrogen ions are transported across the ion-exchange membrane (SPE) and hydrogen is generated at the cathode: The overall reaction is: ) (6.8) )PDF Image | Renewable Electrolysis using Graphene electrodes
