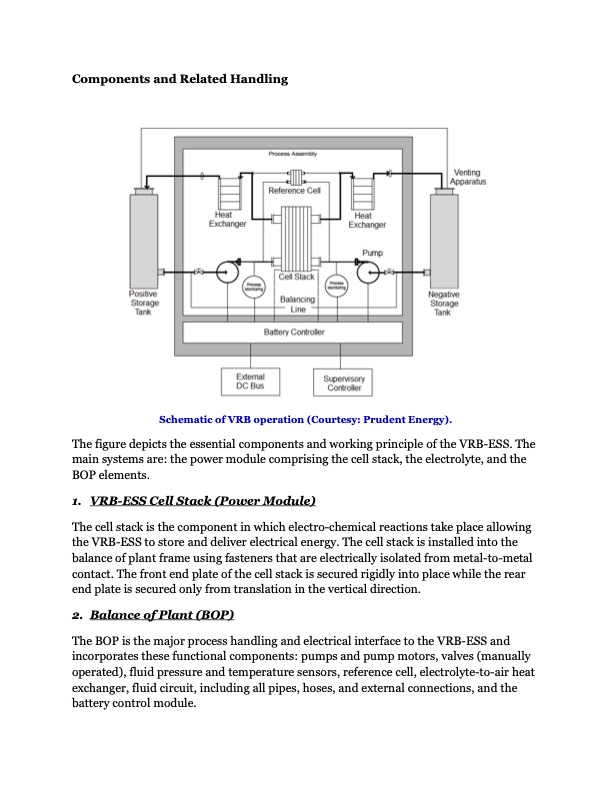

Components and Related Handling Schematic of VRB operation (Courtesy: Prudent Energy). The figure depicts the essential components and working principle of the VRB-ESS. The main systems are: the power module comprising the cell stack, the electrolyte, and the BOP elements. 1. VRB-ESS Cell Stack (Power Module) The cell stack is the component in which electro-chemical reactions take place allowing the VRB-ESS to store and deliver electrical energy. The cell stack is installed into the balance of plant frame using fasteners that are electrically isolated from metal-to-metal contact. The front end plate of the cell stack is secured rigidly into place while the rear end plate is secured only from translation in the vertical direction. 2. Balance of Plant (BOP) The BOP is the major process handling and electrical interface to the VRB-ESS and incorporates these functional components: pumps and pump motors, valves (manually operated), fluid pressure and temperature sensors, reference cell, electrolyte-to-air heat exchanger, fluid circuit, including all pipes, hoses, and external connections, and the battery control module.PDF Image | Advanced Battery Storage Systems Testing at ACEP VRB ESS
