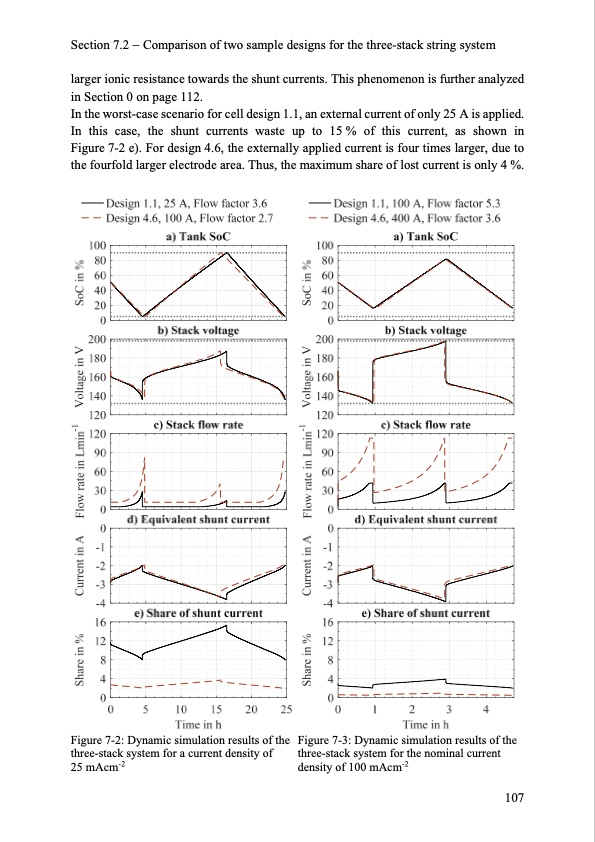

Section 7.2 Comparison of two sample designs for the three-stack string system larger ionic resistance towards the shunt currents. This phenomenon is further analyzed in Section 0 on page 112. In the worst-case scenario for cell design 1.1, an external current of only 25 A is applied. In this case, the shunt currents waste up to 15 % of this current, as shown in Figure 7-2 e). For design 4.6, the externally applied current is four times larger, due to the fourfold larger electrode area. Thus, the maximum share of lost current is only 4 %. Figure7-2:Dynamicsimulationresultsofthe Figure7-3:Dynamicsimulationresultsofthe three-stack system for a current density of three-stack system for the nominal current 25 mAcm-2 density of 100 mAcm-2 107PDF Image | Model-based Design Vanadium Redox Flow Batteries
