Text from PDF Page: 069

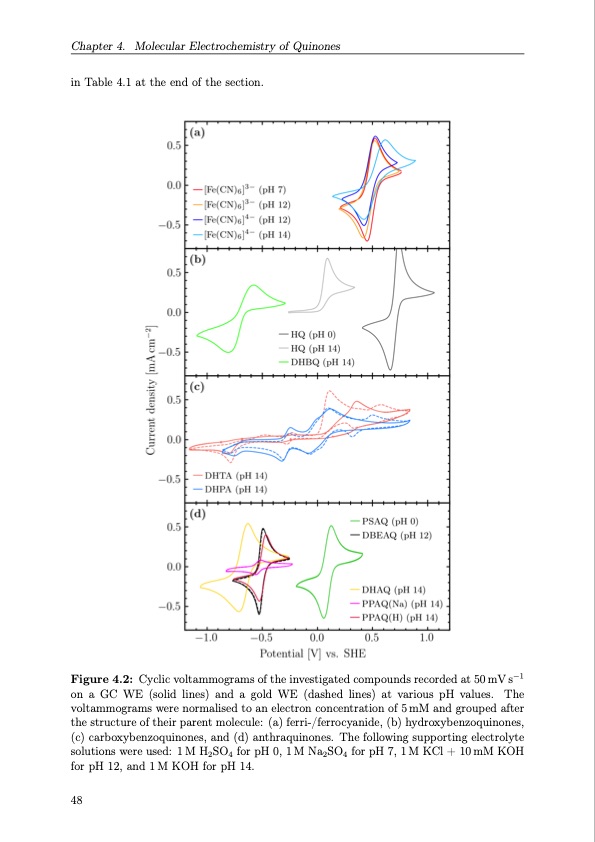

Chapter 4. Molecular Electrochemistry of Quinones in Table 4.1 at the end of the section. Figure 4.2: Cyclic voltammograms of the investigated compounds recorded at 50 mV s−1 on a GC WE (solid lines) and a gold WE (dashed lines) at various pH values. The voltammograms were normalised to an electron concentration of 5 mM and grouped after the structure of their parent molecule: (a) ferri-/ferrocyanide, (b) hydroxybenzoquinones, (c) carboxybenzoquinones, and (d) anthraquinones. The following supporting electrolyte solutions were used: 1M H2SO4 for pH 0, 1M Na2SO4 for pH 7, 1M KCl + 10mM KOH for pH 12, and 1 M KOH for pH 14. 48PDF Image | Organic Redox Flow Batteries 2023
