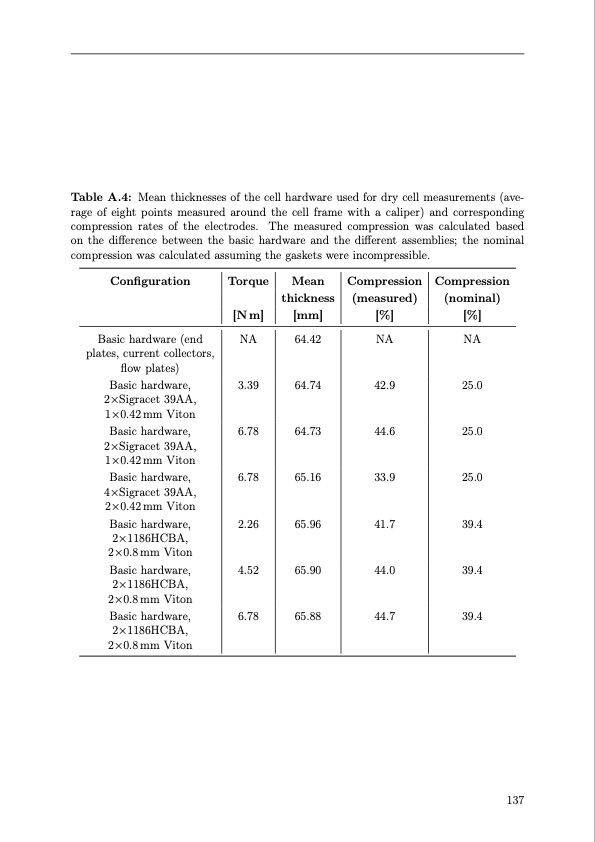

Table A.4: Mean thicknesses of the cell hardware used for dry cell measurements (ave- rage of eight points measured around the cell frame with a caliper) and corresponding compression rates of the electrodes. The measured compression was calculated based on the difference between the basic hardware and the different assemblies; the nominal compression was calculated assuming the gaskets were incompressible. Configuration Torque Mean Compression Compression thickness (measured) (nominal) [Nm] [mm] [%] [%] NA 3.39 6.78 6.78 2.26 4.52 6.78 64.42 64.74 64.73 65.16 65.96 65.90 65.88 NA 42.9 44.6 33.9 41.7 44.0 44.7 Basic hardware (end NA plates, current collectors, flow plates) Basic hardware, 25.0 2×Sigracet 39AA, 1×0.42 mm Viton Basic hardware, 25.0 2×Sigracet 39AA, 1×0.42 mm Viton Basic hardware, 25.0 4×Sigracet 39AA, 2×0.42 mm Viton Basic hardware, 39.4 2×1186HCBA, 2×0.8 mm Viton Basic hardware, 39.4 2×1186HCBA, 2×0.8 mm Viton Basic hardware, 39.4 2×1186HCBA, 2×0.8 mm Viton 137PDF Image | Organic Redox Flow Batteries 2023
