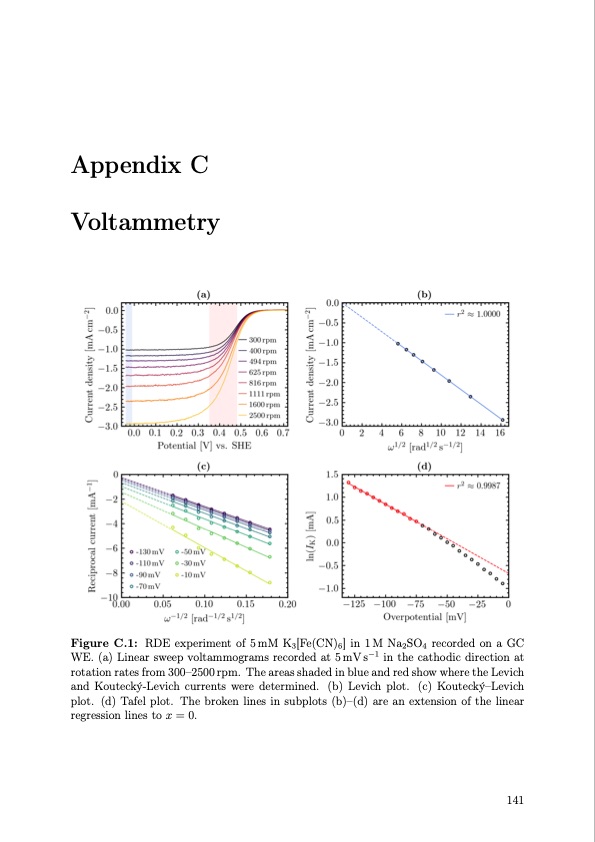

Appendix C Voltammetry Figure C.1: RDE experiment of 5mM K3[Fe(CN)6] in 1M Na2SO4 recorded on a GC WE. (a) Linear sweep voltammograms recorded at 5 mV s−1 in the cathodic direction at rotation rates from 300–2500 rpm. The areas shaded in blue and red show where the Levich and Koutecký-Levich currents were determined. (b) Levich plot. (c) Koutecký–Levich plot. (d) Tafel plot. The broken lines in subplots (b)–(d) are an extension of the linear regression lines to x = 0. 141PDF Image | Organic Redox Flow Batteries 2023
