PDF Publication Title:
Text from PDF Page: 166

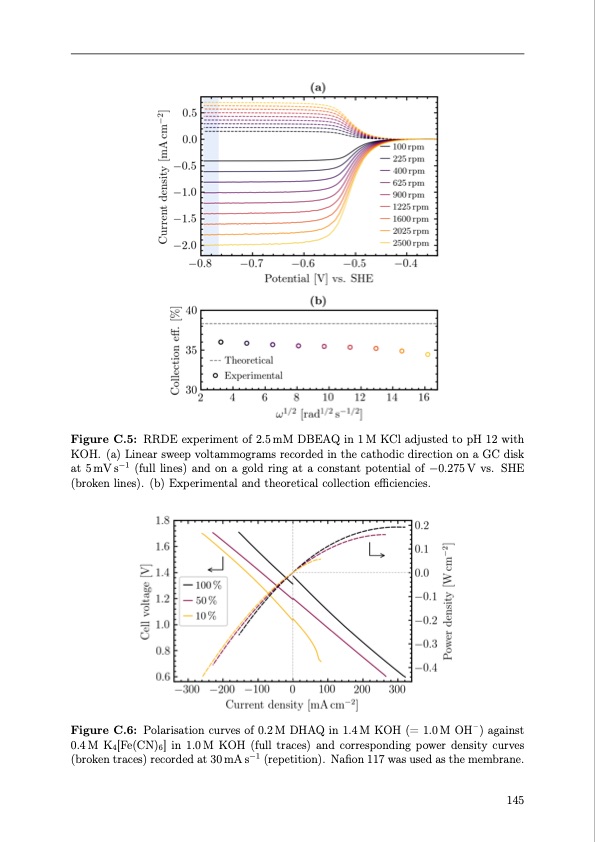

Figure C.5: RRDE experiment of 2.5 mM DBEAQ in 1 M KCl adjusted to pH 12 with KOH. (a) Linear sweep voltammograms recorded in the cathodic direction on a GC disk at 5 mV sā1 (full lines) and on a gold ring at a constant potential of ā0.275 V vs. SHE (broken lines). (b) Experimental and theoretical collection efficiencies. Figure C.6: Polarisation curves of 0.2 M DHAQ in 1.4 M KOH (= 1.0 M OH ā ) against 0.4M K4[Fe(CN)6] in 1.0M KOH (full traces) and corresponding power density curves (broken traces) recorded at 30 mA sā1 (repetition). Nafion 117 was used as the membrane. 145PDF Image | Organic Redox Flow Batteries 2023
PDF Search Title:
Organic Redox Flow Batteries 2023Original File Name Searched:
PhD_thesis_final_dorhoff_4_.pdfDIY PDF Search: Google It | Yahoo | Bing
