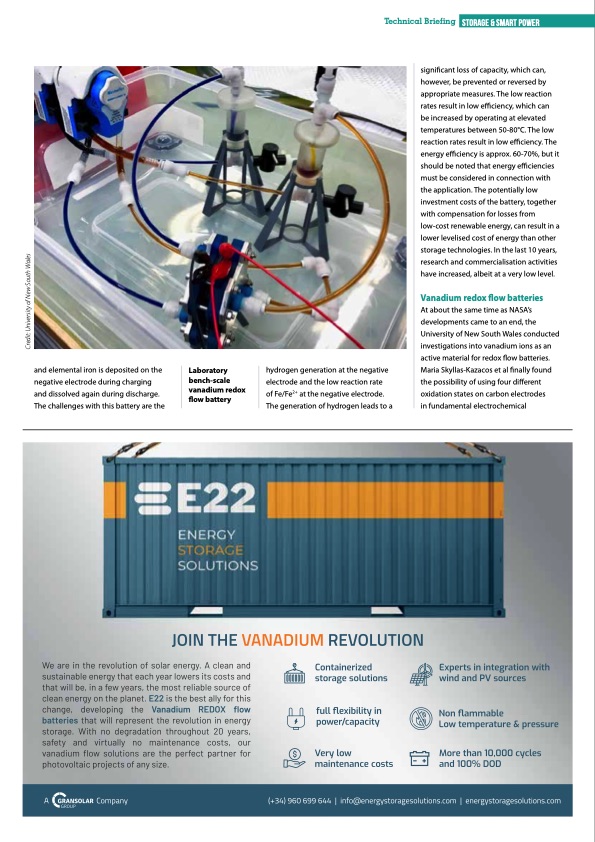

Technical Briefing and elemental iron is deposited on the negative electrode during charging and dissolved again during discharge. The challenges with this battery are the Laboratory bench-scale vanadium redox flow battery hydrogen generation at the negative electrode and the low reaction rate of Fe/Fe2+ at the negative electrode. The generation of hydrogen leads to a significant loss of capacity, which can, however, be prevented or reversed by appropriate measures. The low reaction rates result in low efficiency, which can be increased by operating at elevated temperatures between 50-80°C. The low reaction rates result in low efficiency. The energy efficiency is approx. 60-70%, but it should be noted that energy efficiencies must be considered in connection with the application. The potentially low investment costs of the battery, together with compensation for losses from low-cost renewable energy, can result in a lower levelised cost of energy than other storage technologies. In the last 10 years, research and commercialisation activities have increased, albeit at a very low level. Vanadium redox flow batteries At about the same time as NASA’s developments came to an end, the University of New South Wales conducted investigations into vanadium ions as an active material for redox flow batteries. Maria Skyllas-Kazacos et al finally found the possibility of using four different oxidation states on carbon electrodes in fundamental electrochemical Storage & smart power Credit: Fraunhofer ICT Credit: University of New South WalesPDF Image | Redox flow batteries for renewable energy storage
