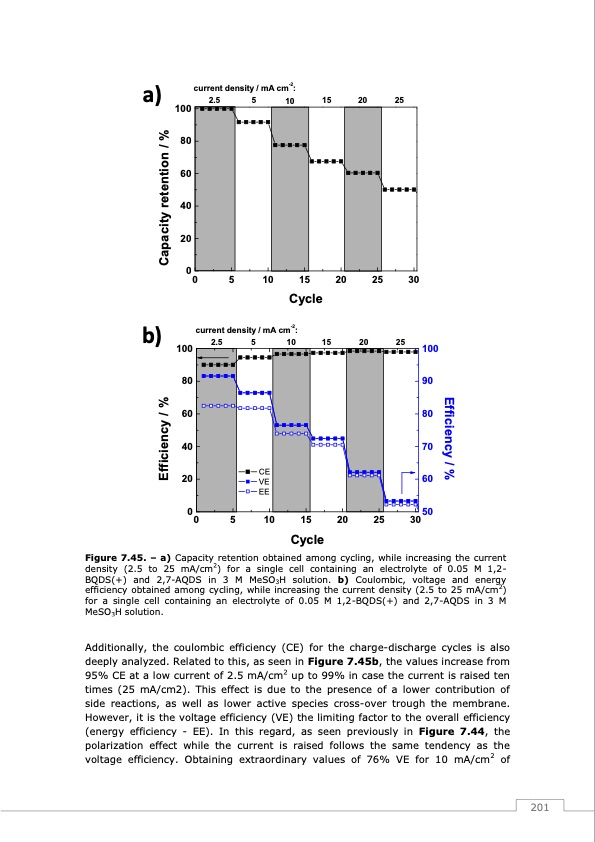

a) 100 80 60 40 20 current density / mA cm-2: 2.5 5 10 15 20 25 b) Cycle current density / mA cm-2: 00 5 10 15 20 25 30 100 2.5 80 60 40 20 5 10 15 20 25 100 90 80 70 60 CE VE EE 00 5 10 15 20 25 3050 Cycle Figure 7.45. – a) Capacity retention obtained among cycling, while increasing the current density (2.5 to 25 mA/cm2) for a single cell containing an electrolyte of 0.05 M 1,2- BQDS(+) and 2,7-AQDS in 3 M MeSO3H solution. b) Coulombic, voltage and energy efficiency obtained among cycling, while increasing the current density (2.5 to 25 mA/cm2) for a single cell containing an electrolyte of 0.05 M 1,2-BQDS(+) and 2,7-AQDS in 3 M MeSO3H solution. Additionally, the coulombic efficiency (CE) for the charge-discharge cycles is also deeply analyzed. Related to this, as seen in Figure 7.45b, the values increase from 95% CE at a low current of 2.5 mA/cm2 up to 99% in case the current is raised ten times (25 mA/cm2). This effect is due to the presence of a lower contribution of side reactions, as well as lower active species cross-over trough the membrane. However, it is the voltage efficiency (VE) the limiting factor to the overall efficiency (energy efficiency - EE). In this regard, as seen previously in Figure 7.44, the polarization effect while the current is raised follows the same tendency as the voltage efficiency. Obtaining extraordinary values of 76% VE for 10 mA/cm2 of 201 Efficiency / % Efficiency / % Capacity retention / %PDF Image | Redox Flow Batteries Vanadium to Earth Quinones
