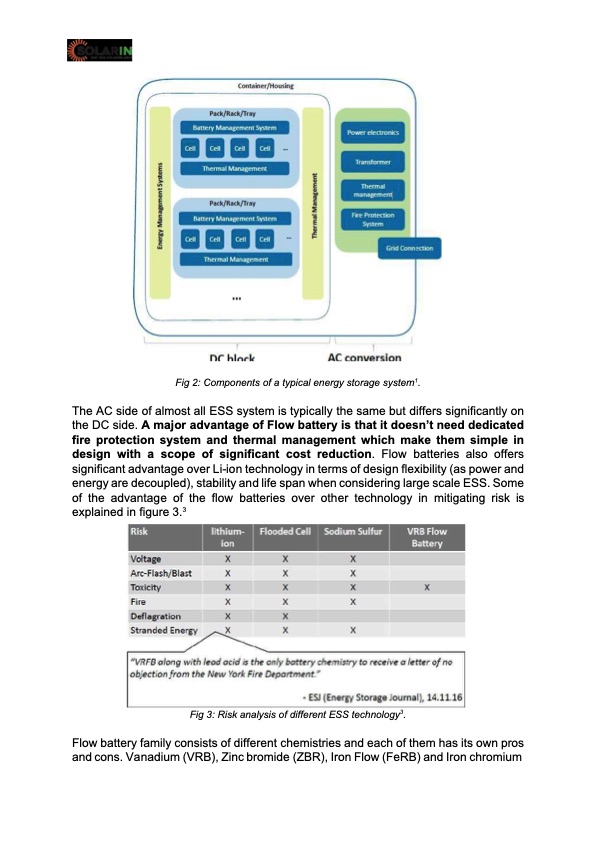

Fig 2: Components of a typical energy storage system1. The AC side of almost all ESS system is typically the same but differs significantly on the DC side. A major advantage of Flow battery is that it doesn’t need dedicated fire protection system and thermal management which make them simple in design with a scope of significant cost reduction. Flow batteries also offers significant advantage over Li-ion technology in terms of design flexibility (as power and energy are decoupled), stability and life span when considering large scale ESS. Some of the advantage of the flow batteries over other technology in mitigating risk is explained in figure 3.3 Fig 3: Risk analysis of different ESS technology3. Flow battery family consists of different chemistries and each of them has its own pros and cons. Vanadium (VRB), Zinc bromide (ZBR), Iron Flow (FeRB) and Iron chromiumPDF Image | Vanadium Redox Flow Batteries for Mass Scale Energy
