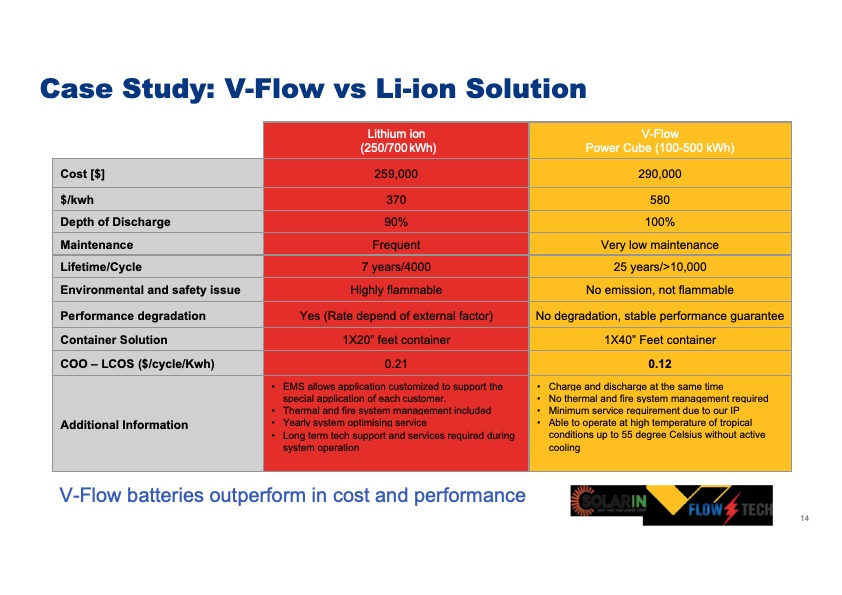

Case Study: V-Flow vs Li-ion Solution Lithium ion (250/700 kWh) 370 V-Flow Power Cube (100-500 kWh) Cost [$] 259,000 290,000 $/kwh 580 Depth of Discharge 90% 100% Maintenance Frequent Very low maintenance Lifetime/Cycle 7 years/4000 25 years/>10,000 Environmental and safety issue Highly flammable No emission, not flammable Performance degradation Yes (Rate depend of external factor) No degradation, stable performance guarantee Container Solution 1X20” feet container 1X40” Feet container COO – LCOS ($/cycle/Kwh) 0.21 0.12 Additional Information • EMS allows application customized to support the special application of each customer. • Thermal and fire system management included • Yearly system optimising service • Long term tech support and services required during system operation • Charge and discharge at the same time • No thermal and fire system management required • Minimum service requirement due to our IP • Able to operate at high temperature of tropical conditions up to 55 degree Celsius without active cooling V-Flow batteries outperform in cost and performance 14PDF Image | Vanadium Redox Flow Batteries for Mass Scale Energy
