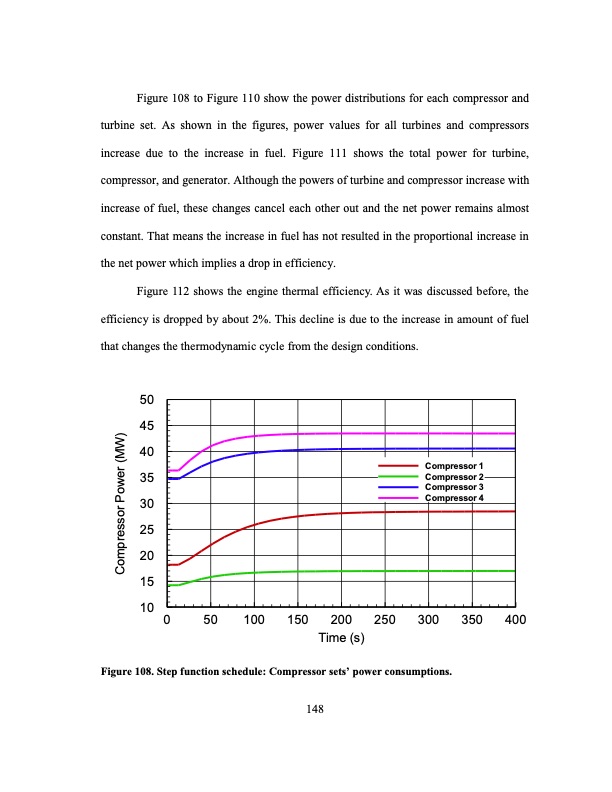

Figure 108 to Figure 110 show the power distributions for each compressor and turbine set. As shown in the figures, power values for all turbines and compressors increase due to the increase in fuel. Figure 111 shows the total power for turbine, compressor, and generator. Although the powers of turbine and compressor increase with increase of fuel, these changes cancel each other out and the net power remains almost constant. That means the increase in fuel has not resulted in the proportional increase in the net power which implies a drop in efficiency. Figure 112 shows the engine thermal efficiency. As it was discussed before, the efficiency is dropped by about 2%. This decline is due to the increase in amount of fuel that changes the thermodynamic cycle from the design conditions. 50 45 40 35 30 25 20 15 10 0 50 100 150 200 250 300 Time (s) 350 400 Compressor 1 Compressor 2 Compressor 3 Compressor 4 Figure 108. Step function schedule: Compressor sets’ power consumptions. 148 Compressor Power (MW)PDF Image | DEVELOPMENT OF AN ULTRA-HIGH EFFICIENCY GAS TURBINE ENGINE (UHEGT
