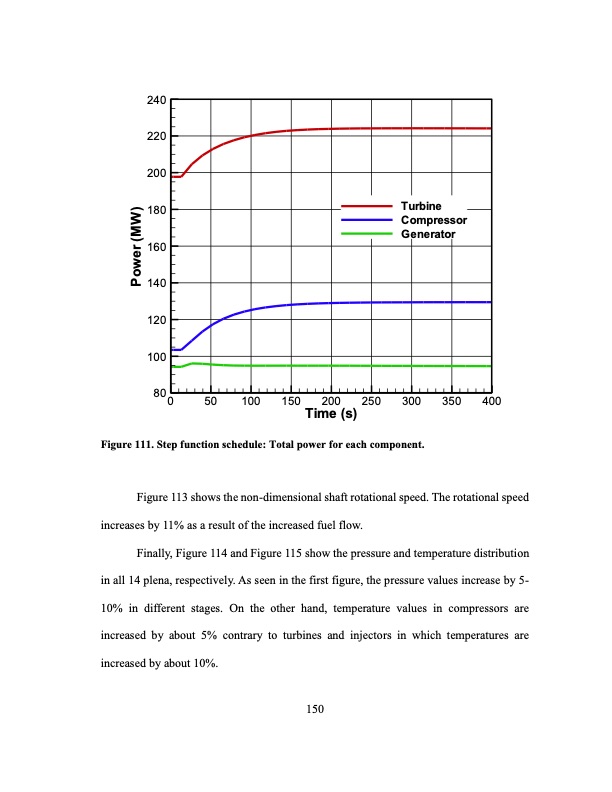

240 220 200 180 160 140 120 100 800 50 100 150 200 250 300 Time (s) 350 400 T urbine Compressor Generator Figure 111. Step function schedule: Total power for each component. Figure 113 shows the non-dimensional shaft rotational speed. The rotational speed increases by 11% as a result of the increased fuel flow. Finally, Figure 114 and Figure 115 show the pressure and temperature distribution in all 14 plena, respectively. As seen in the first figure, the pressure values increase by 5- 10% in different stages. On the other hand, temperature values in compressors are increased by about 5% contrary to turbines and injectors in which temperatures are increased by about 10%. 150 Power (MW)PDF Image | DEVELOPMENT OF AN ULTRA-HIGH EFFICIENCY GAS TURBINE ENGINE (UHEGT
