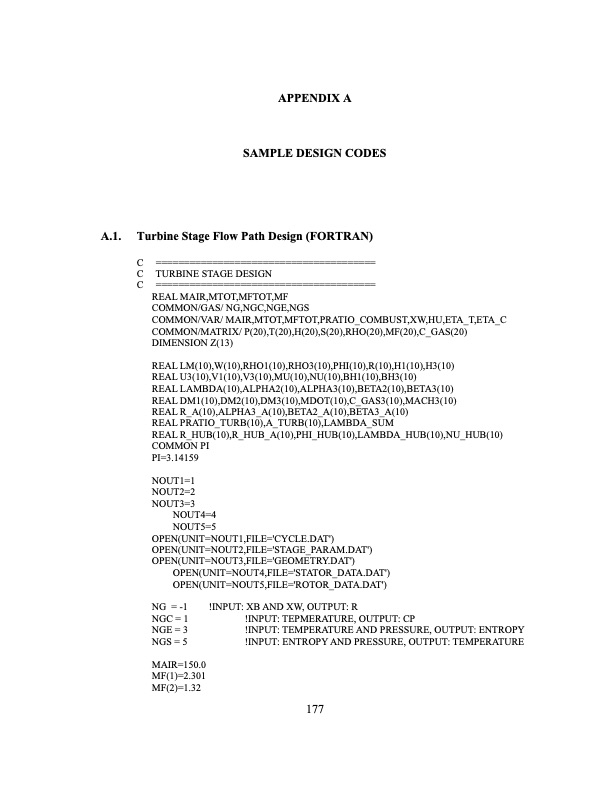

APPENDIX A SAMPLE DESIGN CODES A.1. Turbine Stage Flow Path Design (FORTRAN) C C C ======================================= TURBINE STAGE DESIGN ======================================= REAL MAIR,MTOT,MFTOT,MF COMMON/GAS/ NG,NGC,NGE,NGS COMMON/VAR/ MAIR,MTOT,MFTOT,PRATIO_COMBUST,XW,HU,ETA_T,ETA_C COMMON/MATRIX/ P(20),T(20),H(20),S(20),RHO(20),MF(20),C_GAS(20) DIMENSION Z(13) REAL LM(10),W(10),RHO1(10),RHO3(10),PHI(10),R(10),H1(10),H3(10) REAL U3(10),V1(10),V3(10),MU(10),NU(10),BH1(10),BH3(10) REAL LAMBDA(10),ALPHA2(10),ALPHA3(10),BETA2(10),BETA3(10) REAL DM1(10),DM2(10),DM3(10),MDOT(10),C_GAS3(10),MACH3(10) REAL R_A(10),ALPHA3_A(10),BETA2_A(10),BETA3_A(10) REAL PRATIO_TURB(10),A_TURB(10),LAMBDA_SUM REAL R_HUB(10),R_HUB_A(10),PHI_HUB(10),LAMBDA_HUB(10),NU_HUB(10) COMMON PI PI=3.14159 NOUT1=1 NOUT2=2 NOUT3=3 NOUT4=4 NOUT5=5 OPEN(UNIT=NOUT1,FILE='CYCLE.DAT') OPEN(UNIT=NOUT2,FILE='STAGE_PARAM.DAT') OPEN(UNIT=NOUT3,FILE='GEOMETRY.DAT') OPEN(UNIT=NOUT4,FILE='STATOR_DATA.DAT') OPEN(UNIT=NOUT5,FILE='ROTOR_DATA.DAT') NG = -1 NGC = 1 NGE = 3 NGS = 5 MAIR=150.0 MF(1)=2.301 MF(2)=1.32 !INPUT: XB AND XW, OUTPUT: R !INPUT: TEPMERATURE, OUTPUT: CP !INPUT: TEMPERATURE AND PRESSURE, OUTPUT: ENTROPY !INPUT: ENTROPY AND PRESSURE, OUTPUT: TEMPERATURE 177PDF Image | DEVELOPMENT OF AN ULTRA-HIGH EFFICIENCY GAS TURBINE ENGINE (UHEGT
