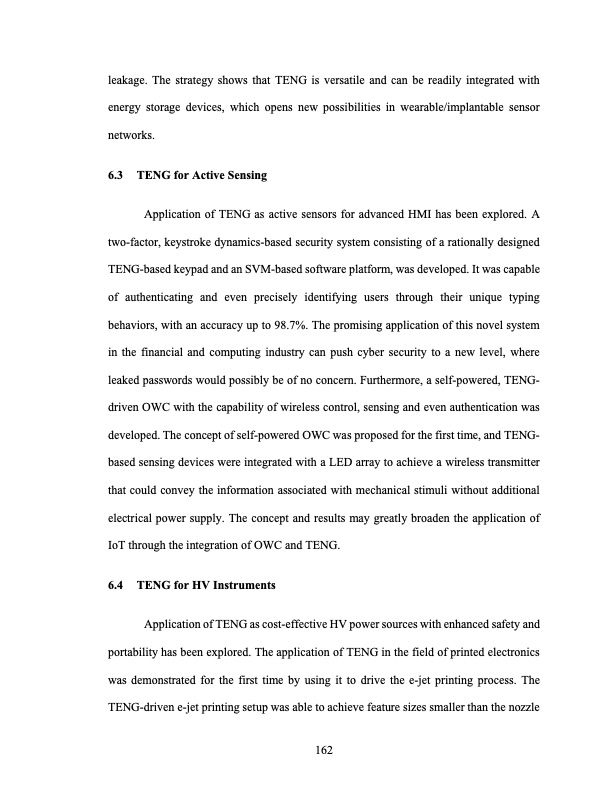

leakage. The strategy shows that TENG is versatile and can be readily integrated with energy storage devices, which opens new possibilities in wearable/implantable sensor networks. 6.3 TENG for Active Sensing Application of TENG as active sensors for advanced HMI has been explored. A two-factor, keystroke dynamics-based security system consisting of a rationally designed TENG-based keypad and an SVM-based software platform, was developed. It was capable of authenticating and even precisely identifying users through their unique typing behaviors, with an accuracy up to 98.7%. The promising application of this novel system in the financial and computing industry can push cyber security to a new level, where leaked passwords would possibly be of no concern. Furthermore, a self-powered, TENG- driven OWC with the capability of wireless control, sensing and even authentication was developed. The concept of self-powered OWC was proposed for the first time, and TENG- based sensing devices were integrated with a LED array to achieve a wireless transmitter that could convey the information associated with mechanical stimuli without additional electrical power supply. The concept and results may greatly broaden the application of IoT through the integration of OWC and TENG. 6.4 TENG for HV Instruments Application of TENG as cost-effective HV power sources with enhanced safety and portability has been explored. The application of TENG in the field of printed electronics was demonstrated for the first time by using it to drive the e-jet printing process. The TENG-driven e-jet printing setup was able to achieve feature sizes smaller than the nozzle 162PDF Image | HIGH PERFORMANCE TRIBOELECTRIC NANOGENERATOR AND ITS APPLICATIONS
