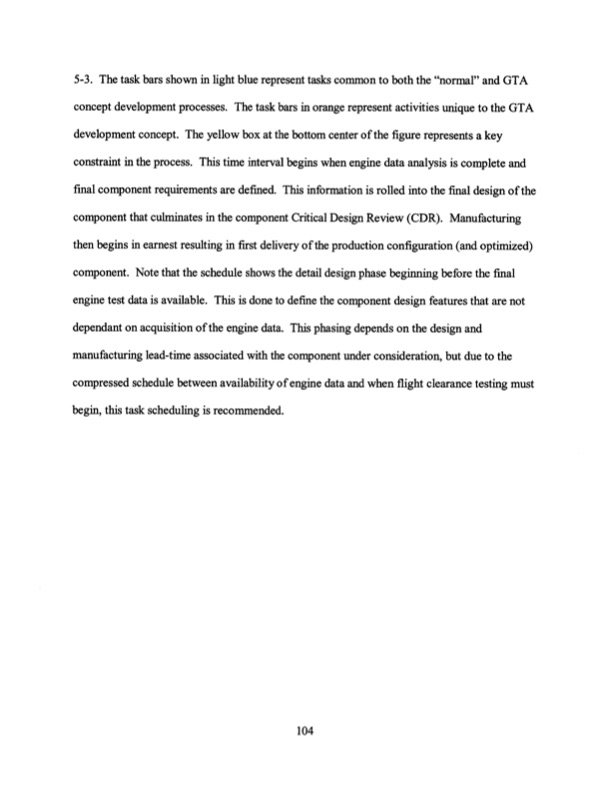

5-3. The task bars shown in light blue represent tasks common to both the "normal" and GTA concept development processes. The task bars in orange represent activities unique to the GTA development concept. The yellow box at the bottom center of the figure represents a key constraint in the process. This time interval begins when engine data analysis is complete and final component requirements are defined. This information is rolled into the final design of the component that culminates in the component Critical Design Review (CDR). Manufacturing then begins in earnest resulting in first delivery of the production configuration (and optimized) component. Note that the schedule shows the detail design phase beginning before the final engine test data is available. This is done to define the component design features that are not dependant on acquisition ofthe engine data. This phasing depends on the design and manufacturing lead-time associated with the component under consideration, but due to the compressed schedule between availability of engine data and when flight clearance testing must begin, this task scheduling is recommended. 104PDF Image | Improving Gas Turbine Engine Control System
