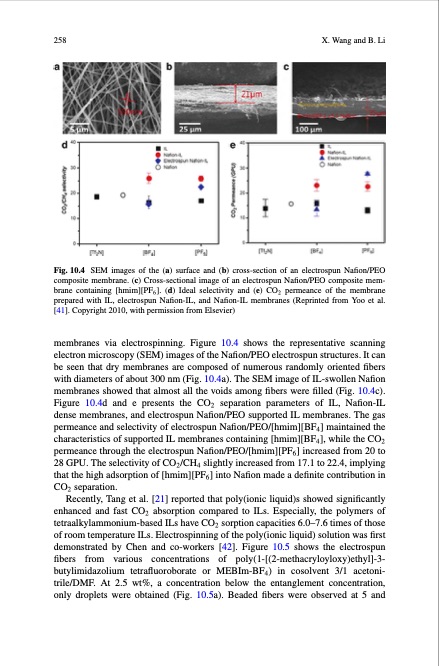

258 X. Wang and B. Li Fig. 10.4 SEM images of the (a) surface and (b) cross-section of an electrospun Nafion/PEO composite membrane. (c) Cross-sectional image of an electrospun Nafion/PEO composite mem- brane containing [hmim][PF6]. (d) Ideal selectivity and (e) CO2 permeance of the membrane prepared with IL, electrospun Nafion-IL, and Nafion-IL membranes (Reprinted from Yoo et al. [41]. Copyright 2010, with permission from Elsevier) membranes via electrospinning. Figure 10.4 shows the representative scanning electron microscopy (SEM) images of the Nafion/PEO electrospun structures. It can be seen that dry membranes are composed of numerous randomly oriented fibers with diameters of about 300 nm (Fig. 10.4a). The SEM image of IL-swollen Nafion membranes showed that almost all the voids among fibers were filled (Fig. 10.4c). Figure 10.4d and e presents the CO2 separation parameters of IL, Nafion-IL dense membranes, and electrospun Nafion/PEO supported IL membranes. The gas permeance and selectivity of electrospun Nafion/PEO/[hmim][BF4] maintained the characteristics of supported IL membranes containing [hmim][BF4], while the CO2 permeance through the electrospun Nafion/PEO/[hmim][PF6] increased from 20 to 28 GPU. The selectivity of CO2/CH4 slightly increased from 17.1 to 22.4, implying that the high adsorption of [hmim][PF6] into Nafion made a definite contribution in CO2 separation. Recently, Tang et al. [21] reported that poly(ionic liquid)s showed significantly enhanced and fast CO2 absorption compared to ILs. Especially, the polymers of tetraalkylammonium-based ILs have CO2 sorption capacities 6.0–7.6 times of those of room temperature ILs. Electrospinning of the poly(ionic liquid) solution was first demonstrated by Chen and co-workers [42]. Figure 10.5 shows the electrospun fibers from various concentrations of poly(1-[(2-methacryloyloxy)ethyl]-3- butylimidazolium tetrafluoroborate or MEBIm-BF4) in cosolvent 3/1 acetoni- trile/DMF. At 2.5 wt%, a concentration below the entanglement concentration, only droplets were obtained (Fig. 10.5a). Beaded fibers were observed at 5 andPDF Image | Electrospun Nanofibrous Sorbents
