Text from PDF Page: 110

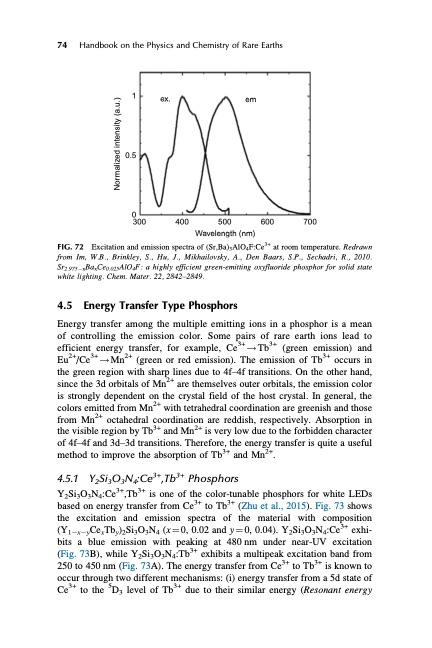

74 Handbook on the Physics and Chemistry of Rare Earths 1 0.5 0 300 ex. em 400 500 600 700 Wavelength (nm) Excitation and emission spectra of (Sr,Ba)3AlO4F:Ce3+ at room temperature. Redrawn from Im, W.B., Brinkley, S., Hu, J., Mikhailovsky, A., Den Baars, S.P., Sechadri, R., 2010. Sr2.975xBaxCe0.025AlO4F: a highly efficient green-emitting oxyfluoride phosphor for solid state white lighting. Chem. Mater. 22, 2842–2849. 4.5 Energy Transfer Type Phosphors Energy transfer among the multiple emitting ions in a phosphor is a mean of controlling the emission color. Some pairs of rare earth ions lead to efficient energy transfer, for example, Ce3+ ! Tb3+ (green emission) and Eu2+/Ce3+!Mn2+ (green or red emission). The emission of Tb3+ occurs in the green region with sharp lines due to 4f–4f transitions. On the other hand, since the 3d orbitals of Mn2+ are themselves outer orbitals, the emission color is strongly dependent on the crystal field of the host crystal. In general, the colors emitted from Mn2+ with tetrahedral coordination are greenish and those from Mn2+ octahedral coordination are reddish, respectively. Absorption in the visible region by Tb3+ and Mn2+ is very low due to the forbidden character of 4f–4f and 3d–3d transitions. Therefore, the energy transfer is quite a useful method to improve the absorption of Tb3+ and Mn2+. 4.5.1 Y2Si3O3N4:Ce3+,Tb3+ Phosphors Y2Si3O3N4:Ce3+,Tb3+ is one of the color-tunable phosphors for white LEDs based on energy transfer from Ce3+ to Tb3+ (Zhu et al., 2015). Fig. 73 shows the excitation and emission spectra of the material with composition (Y1xyCexTby)2Si3O3N4 (x1⁄40, 0.02 and y1⁄40, 0.04). Y2Si3O3N4:Ce3+ exhi- bits a blue emission with peaking at 480 nm under near-UV excitation (Fig. 73B), while Y2Si3O3N4:Tb3+ exhibits a multipeak excitation band from 250 to 450 nm (Fig. 73A). The energy transfer from Ce3+ to Tb3+ is known to occur through two different mechanisms: (i) energy transfer from a 5d state of Ce3+ to the 5D3 level of Tb3+ due to their similar energy (Resonant energy FIG. 72 Normalized intensity (a.u.)PDF Image | HANDBOOK ON THE PHYSICS AND CHEMISTRY OF RARE EARTHS
