PDF Publication Title:
Text from PDF Page: 210

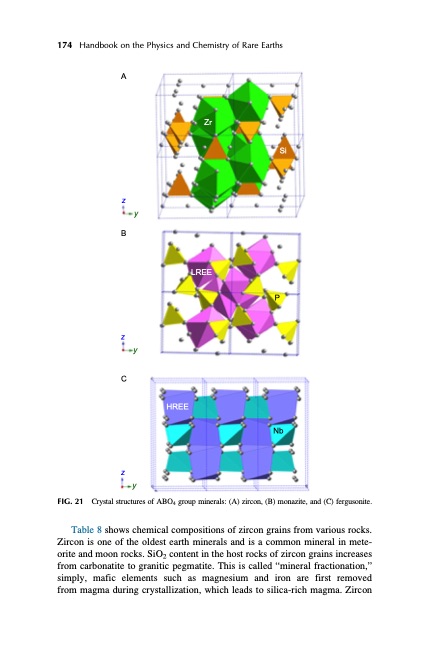

174 Handbook on the Physics and Chemistry of Rare Earths A FIG. 21 Crystal structures of ABO4 group minerals: (A) zircon, (B) monazite, and (C) fergusonite. z y B z y C z y LREE HREE Zr Table 8 shows chemical compositions of zircon grains from various rocks. Zircon is one of the oldest earth minerals and is a common mineral in mete- orite and moon rocks. SiO2 content in the host rocks of zircon grains increases from carbonatite to granitic pegmatite. This is called “mineral fractionation,” simply, mafic elements such as magnesium and iron are first removed from magma during crystallization, which leads to silica-rich magma. Zircon P Nb SiPDF Image | HANDBOOK ON THE PHYSICS AND CHEMISTRY OF RARE EARTHS
PDF Search Title:
HANDBOOK ON THE PHYSICS AND CHEMISTRY OF RARE EARTHSOriginal File Name Searched:
Chemistry-Rare-Earths-49.pdfDIY PDF Search: Google It | Yahoo | Bing
