PDF Publication Title:
Text from PDF Page: 015

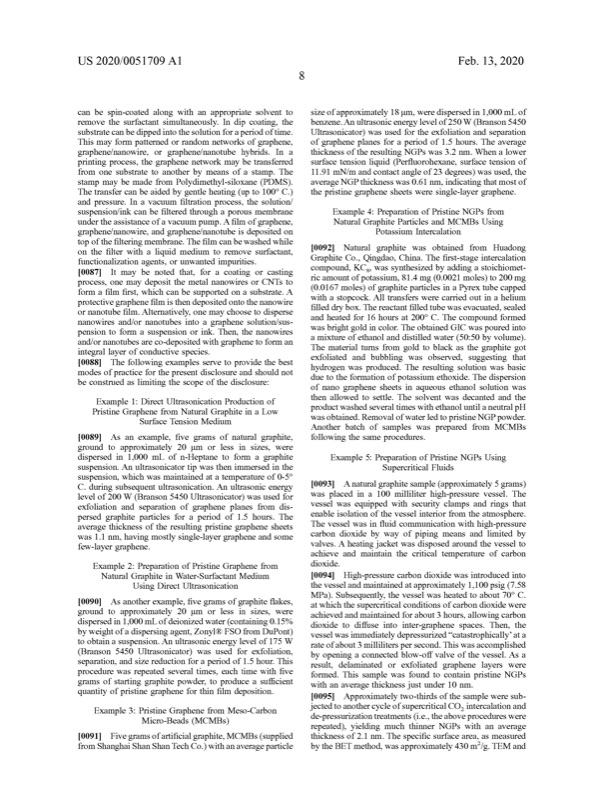

US 2020/0051709A1 Feb.13,2020 8 canbespin-coatedalongwithanapropriatesolventto sizeofaproximately18um,weredispersedin1,0mLof removethesurfactantsimultaneously.Indipcoating,the benzene.Anultrasonicenergylevelof250W(Branson5450 substratecanbedipedintothesolutionforaperiodoftime. Ultrasonicator)wasusedfortheexfoliationandseparation Thismayformpaternedorrandomnetworksofgraphene, ofgrapheneplanesforaperiodof1.5hours.Theaverage graphene/nanowire,orgraphene/nanotubehybrids.Ina thicknesoftheresultingNGPswas3.2nm.Whenalower printingproces,thegraphenenetworkmaybetransfered fromonesubstratetoanotherbymeansofastamp.The 1.91mN/mandcontactangleof23degres)wasused,the stampmaybemadefromPolydimethyl-siloxane(PDMS). averageNGPthickneswas0.61nm,indicatingthatmostof Thetransfercanbeaidedbygentleheating(upto10°C.) thepristinegrapheneshetsweresingle-layergraphene. andpresure.Inavacum filtrationproces,thesolution/ suspension/inkcanbefilteredthroughaporousmembrane Example4:PreparationofPristineNGPsfrom undertheasistanceofavacum pump.Afilmofgraphene, graphene/nanowire,andgraphene/nanotubeisdepositedon topofthefilteringmembrane.Thefilmcanbewashedwhile NaturalGraphiteParticlesandMCMBsUsing Potassium Intercalation [0092]NaturalgraphitewasobtainedfromHuadong onthefilterwithaliquidmediumtoremovesurfactant, GraphiteCo.,Qingdao,China.Thefirst-stageintercalation functionalizationagents,orunwantedimpurities. compound,KC8,wassynthesizedbyadingastoichiomet [0087]Itmaybenotedthat,foracoatingorcasting ricamountofpotasium,81.4mg(0.021moles)to20mg proces,onemaydepositthemetalnanowiresorCNTsto (0.0167moles)ofgraphiteparticlesinaPyrextubecaped formafilmfirst,whichcanbesuportedonasubstrate.A withastopcock.Altransferswerecariedoutinahelium protectivegraphenefilmisthendepositedontothenanowire fileddrybox.Thereactantfiledtubewasevacuated,sealed ornanotubefilm.Alternatively,onemaychosetodisperse andheatedfor16hoursat20°C.Thecompoundformed nanowiresand/ornanotubesintoagraphenesolution/sus wasbrightgoldincolor.TheobtainedGICwaspouredinto pensiontoformasuspensionorink.Then,thenanowires amixtureofethanolanddistiledwater(50:50byvolume). and/ornanotubesareco-depositedwithgraphenetoforman Thematerialturnsfromgoldtoblackasthegraphitegot integrallayerofconductivespecies. exfoliated and bublingwas observed,sugestingthat [08]Thefolowingexamplesservetoprovidethebest hydrogenwasproduced.Theresultingsolutionwasbasic modesofpracticeforthepresentdisclosureandshouldnot duetotheformationofpotasiumethoxide.Thedispersion beconstruedaslimitingthescopeofthedisclosure: ofnanographeneshetsinaqueousethanolsolutionwas Example1:DirectUltrasonicationProductionof PristineGraphenefromNaturalGraphiteinaLow Surface TensionMedium then allowed to setle. The solventwas decanted and the productwashedseveraltimeswithethanoluntilaneutralpH wasobtained.RemovalofwaterledtopristineNGPpowder. Another batch of samples was prepared from MCMBS [0089]Asanexample,fivegramsofnaturalgraphite, folowingthesameprocedures. groundtoaproximately20um orlesinsizes,were dispersedin1,0mLofn-Heptanetoform agraphite suspension.Anultrasonicatortipwasthenimmersedinthe suspension,whichwasmaintainedatatemperatureof0-5° C.duringsubsequentultrasonication.Anultrasonicenergy levelof20W(Branson5450Ultrasonicator)wasusedfor exfoliation and separation of graphene planes from dis persedgraphiteparticlesforaperiodof1.5hours.The averagethicknesoftheresultingpristinegrapheneshets was1.1nm,havingmostlysingle-layergrapheneandsome few-layergraphene. Example2:PreparationofPristineGraphenefrom NaturalGraphiteinWater-SurfactantMedium UsingDirectUltrasonication Example5:PreparationofPristineNGPsUsing SupercriticalFluids [0093] Anaturalgraphitesample(aproximately5grams) wasplacedina10mililiterhigh-presurevesel.The veselwasequipedwithsecurityclampsandringsthat enableisolationoftheveselinteriorfrom theatmosphere. Theveselwasinfluidcomunicationwithhigh-presure carbon dioxide by way of piping means and limited by valves.Aheatingjacketwasdisposedaroundtheveselto achieve and maintain the critical temperature of carbon dioxide. [0094] High-presurecarbondioxidewasintroducedinto theveselandmaintainedataproximately1,10psig(7.58 [090]Asanotherexample,fivegramsofgraphiteflakes, MPa).Subsequently,theveselwasheatedtoabout70°C. groundtoaproximately20umorlesinsizes,were atwhichthesupercriticalconditionsofcarbondioxidewere dispersedin1,0mLofdeionizedwater(containing0.15% achievedandmaintainedforabout3hours,alowingcarbon byweightofadispersingagent,Zonyl®FSOfromDuPont) dioxidetodifuseintointer-graphenespaces.Then,the toobtainasuspension.Anultrasonicenergylevelof175W veselwasimediatelydepresurized"catastrophicaly’ata (Branson5450Ultrasonicator)wasusedforexfoliation, rateofabout3mililiterspersecond.Thiswasacomplished separation,andsizereductionforaperiodof1.5hour.This byopeningaconectedblow-ofvalveofthevesel.Asa procedurewasrepeatedseveraltimes,eachtimewithfive result,delaminatedorexfoliatedgraphenelayerswere gramsofstartinggraphitepowder,toproduceasuficient formed.ThissamplewasfoundtocontainpristineNGPs quantityofpristinegrapheneforthinfilmdeposition. withanaveragethicknesjustunder10nm. [095] Aproximatelytwo-thirdsofthesampleweresub Example3:PristineGraphenefromMeso-Carbon Micro-Beads(MCMBs) jectedtoanothercycleofsupercriticalCO,intercalationand de-presurizationtreatments(i.e.,theaboveprocedureswere repeated),yieldingmuchthinerNGPswithanaverage [0091]Fivegramsofartificialgraphite,MCMBS(suplied thicknesof2.1nm.Thespecificsurfacearea,asmeasured fromShanghaiShanShanTechCo.)withanaverageparticle bytheBETmethod,wasaproximately430m2/g.TEMand surfacetensionliquid(Perfluorohexane,surfacetensionofPDF Image | HIGHLY CONDUCTING AND TRANSPARENT FILM AND PROCESS
PDF Search Title:
HIGHLY CONDUCTING AND TRANSPARENT FILM AND PROCESSOriginal File Name Searched:
US20200051709A1.pdfDIY PDF Search: Google It | Yahoo | Bing
Sulfur Deposition on Carbon Nanofibers using Supercritical CO2 Sulfur Deposition on Carbon Nanofibers using Supercritical CO2. Gamma sulfur also known as mother of pearl sulfur and nacreous sulfur... More Info
CO2 Organic Rankine Cycle Experimenter Platform The supercritical CO2 phase change system is both a heat pump and organic rankine cycle which can be used for those purposes and as a supercritical extractor for advanced subcritical and supercritical extraction technology. Uses include producing nanoparticles, precious metal CO2 extraction, lithium battery recycling, and other applications... More Info
| CONTACT TEL: 608-238-6001 Email: greg@infinityturbine.com | RSS | AMP |
