PDF Publication Title:
Text from PDF Page: 016

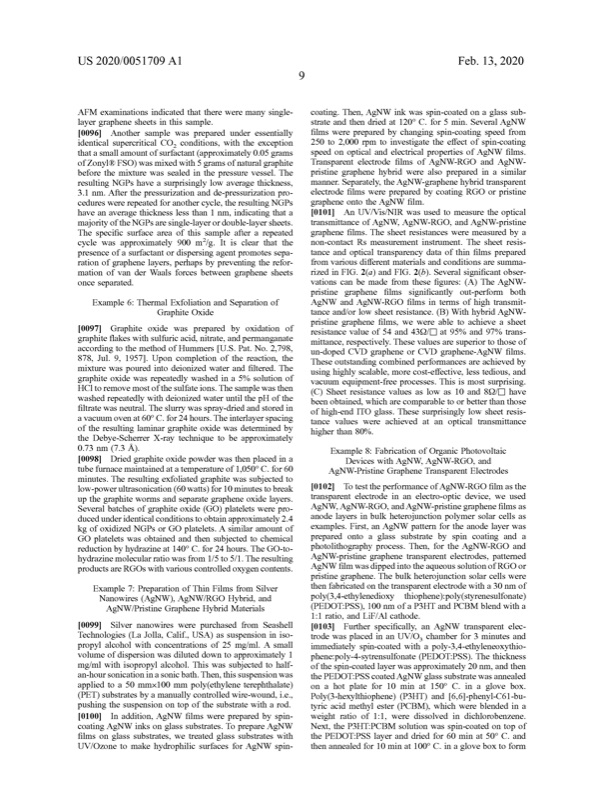

US 2020/0051709A1 Feb.13,2020 9 AFMexaminationsindicatedthatthereweremanysingle coating.Then,AgNWinkwasspin-coatedonaglassub layergrapheneshetsinthissample. filmswerepreparedbychangingspin-coatingspedfrom identicalsupercriticalCo,conditions,withtheexception 250to2,0rpmtoinvestigatetheefectofspin-coating [09] Anothersamplewaspreparedunderesentialy spedonopticalandelectricalpropertiesofAgNW films. ofZonyl®FSO)wasmixedwith5gramsofnaturalgraphite TransparentelectrodefilmsofAgNW-RGOandAgNW majorityoftheNGPsaresingle-layerordouble-layershets. transmitanceofAgNW,AgNW-RGO,andAgNW-pristine Thespecificsurfaceareaofthissampleafterarepeated graphenefilms.Theshetresistancesweremeasuredbya cyclewasaproximately90m/g.Itisclearthatthe non-contactRsmeasurementinstrument.Theshetresis presenceofasurfactantordispersingagentpromotessepa tanceandopticaltransparencydataofthinfilmsprepared rationofgraphenelayers,perhapsbypreventingtherefor fromvariousdiferentmaterialsandconditionsaresumma mationofvanderWaalsforcesbetweengrapheneshets rizedinFIG.2(a)andFIG.2(b).Severalsignificantobser thatasmalamountofsurfactant(aproximately0.05grams beforethemixturewassealedinthepresurevesel.The pristinegraphenehybridwerealsopreparedinasimilar resultingNGPshaveasurprisinglylowaveragethicknes, manner.Separately,theAgNW-graphenehybridtransparent 3.1nm.Afterthepresurizationandde-presurizationpro electrodefilmswerepreparedbycoatingRGOorpristine cedureswererepeatedforanothercycle,theresultingNGPs grapheneontotheAgNWfilm. haveanaveragethickneslesthan1nm,indicatingthata [0101]AnUV/Vis/NIRwasusedtomeasuretheoptical onceseparated. Example6:ThermalExfoliationandSeparationof GraphiteOxide [0097] Graphite oxide was prepared by oxidation of graphiteflakeswithsulfuricacid,nitrate,andpermanganate acordingtothemethodofHummers[U.S.Pat.No.2,798, 878,Jul.9,1957].Uponcompletionofthereaction,the mixturewaspouredintodeionizedwaterandfiltered.The graphiteoxidewasrepeatedlywashedina5%solutionof HCltoremovemostofthesulfateions.Thesamplewasthen washedrepeatedlywithdeionizedwateruntilthepHofthe filtratewasneutral.Theslurywasspray-driedandstoredin avacumovenat60°C.for24hours.Theinterlayerspacing oftheresultinglaminargraphiteoxidewasdeterminedby theDebye-SchererX-raytechniquetobeaproximately 0.73 nm (7.3 Å). vationscanbemadefromthesefigures:(A)TheAgNW pristine graphene filmssignificantly out-perform both AgNW andAgNW-RGO filmsintermsofhightransmit tanceand/orlowshetresistance.(B)WithhybridAgNW pristinegraphenefilms,wewereabletoachieveashet resistance value of 54 and 432/1 at 95 % and 97 % trans mitance,respectively.Thesevaluesaresuperiortothoseof un-dopedCVD grapheneorCVD graphene-AgNW films. Theseoutstandingcombinedperformancesareachievedby usinghighlyscalable,morecost-efective,lestedious,and vacum equipment-freproceses.Thisismostsurprising. (C)Shetresistancevaluesaslowas10and892/0 have benobtained,whicharecomparabletoorbeterthanthose ofhigh-endITOglas.Thesesurprisinglylowshetresis tance valueswere achieved atan opticaltransmitance higherthan80%. Example8:FabricationofOrganicPhotovoltaic DeviceswithAgNW,AgNW-RGO,and [098] Driedgraphiteoxidepowderwasthenplacedina tubefurnacemaintainedatatemperatureof1,050°C.for60 AgNW-PristineGrapheneTransparentElectrodes minutes.Theresultingexfoliatedgraphitewassubjectedto low-powerultrasonication(60wats)for10minutestobreak upthegraphitewormsandseparategrapheneoxidelayers. Severalbatchesofgraphiteoxide(GO)plateletswerepro ducedunderidenticalconditionstoobtainaproximately2.4 kgofoxidizedNGPsorGO platelets.Asimilaramountof GO plateletswasobtainedandthensubjectedtochemical reductionbyhydrazineat140°C.for24hours.TheGO-to hydrazinemolecularratiowasfrom1/5to5/1.Theresulting productsareRGOswithvariouscontroledoxygencontents. Example7:PreparationofThinFilmsfrom Silver Nanowires(AgNW),AgNW/RGO Hybrid,and AgNW/PristineGrapheneHybridMaterials [0102] TotesttheperformanceofAgNW-RGO filmasthe transparentelectrodeinanelectro-opticdevice,weused AgNW,AgNW-RGO,andAgNW-pristinegraphenefilmsas anodelayersinbulkheterojunctionpolymersolarcelsas examples.First,anAgNW paternfortheanodelayerwas prepared onto a glas substrate by spin coating and a photolithographyproces.Then,fortheAgNW-RGO and AgNW-pristinegraphenetransparentelectrodes,paterned AgNW filmwasdipedintotheaqueoussolutionofRGOor pristinegraphene.Thebulkheterojunctionsolarcelswere thenfabricatedonthetransparentelectrodewitha30nmof poly(3,4-ethylenedioxy thiophene):poly(styrenesulfonate) (PEDOT:PSS),100nm ofaP3HTandPCBM blendwitha 1:1ratio,andLiF/Alcathode. [09]SilvernanowireswerepurchasedfromSeashel [0103]Furtherspecificaly,anAgNWtransparentelec Technologies(LaJola,Calif.,USA)assuspensioniniso propylalcoholwithconcentrationsof25mg/ml.Asmal imediatelyspin-coatedwithapoly-3,4-ethyleneoxythio volumeofdispersionwasdiluteddowntoaproximately1 phene:poly-4-sytrensulfonate(PEDOT:PSS).Thethicknes mg/mlwithisopropylalcohol.Thiswassubjectedtohalf an-hoursonicationinasonicbath.Then,thissuspensionwas apliedtoa50mmx100mm poly(ethyleneterephthalate) (PET)substratesbyamanuallycontroledwire-wound,i.e., pushingthesuspensionontopofthesubstratewitharod. [0100]Inadition,AgNWfilmswerepreparedbyspin weightratioof1:1,weredisolvedindichlorobenzene. coatingAgNWinksonglassubstrates.ToprepareAgNW Next,theP3HT:PCBMsolutionwasspin-coatedontopof filmsonglassubstrates,wetreatedglassubstrateswith thePEDOT:PSSlayeranddriedfor60minat50°C.and UV/OzonetomakehydrophilicsurfacesforAgNWspin thenanealedfor10minat10°C.inagloveboxtoform strateandthendriedat120°C.for5min.SeveralAgNW trodewasplacedinanUV/Ozchamberfor3minutesand ofthespin-coatedlayerwasaproximately20nm,andthen thePEDOT:PSScoatedAgNW glassubstratewasanealed on a hot plate for 10 min at 150° C. in a glove box. Poly(3-hexylthiophene)(P3HT)and[6,6]-phenyl-C61-bu tyricacidmethylester(PCBM),whichwereblendedinaPDF Image | HIGHLY CONDUCTING AND TRANSPARENT FILM AND PROCESS
PDF Search Title:
HIGHLY CONDUCTING AND TRANSPARENT FILM AND PROCESSOriginal File Name Searched:
US20200051709A1.pdfDIY PDF Search: Google It | Yahoo | Bing
Sulfur Deposition on Carbon Nanofibers using Supercritical CO2 Sulfur Deposition on Carbon Nanofibers using Supercritical CO2. Gamma sulfur also known as mother of pearl sulfur and nacreous sulfur... More Info
CO2 Organic Rankine Cycle Experimenter Platform The supercritical CO2 phase change system is both a heat pump and organic rankine cycle which can be used for those purposes and as a supercritical extractor for advanced subcritical and supercritical extraction technology. Uses include producing nanoparticles, precious metal CO2 extraction, lithium battery recycling, and other applications... More Info
| CONTACT TEL: 608-238-6001 Email: greg@infinityturbine.com | RSS | AMP |
