PDF Publication Title:
Text from PDF Page: 015

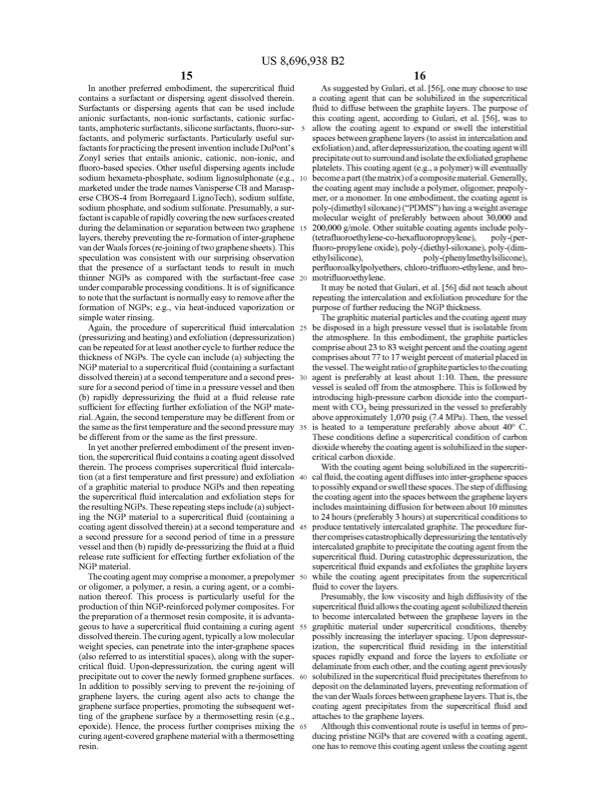

15 16 tion(atafirsttemperatureandfirstpresure)andexfoliation40 ofagraphiticmaterialtoproduceNGPsandthenrepeating thesupercriticalfluidintercalationandexfoliationstepsfor theresultingNGPs.Theserepeatingstepsinclude(a)subject ingtheNGPmaterialtoasupercriticalfluid(containinga coatingagentdissolvedtherein)atasecondtemperatureand45 asecondpressureforasecondperiodoftimeinapressure veselandthen(b)rapidlyde-presurizingthefluidatafluid releaseratesuficientforefectingfurtherexfoliationofthe NGP material. calfluid,thecoatingagentdifusesintointer-graphenespaces topossiblyexpandorSwellthesespaces.Thestepofdifusing thecoatingagentintothespacesbetweenthegraphenelayers includesmaintainingdifusionforbetweenabout10minutes to24hours(preferably3hours)atsupercriticalconditionsto producetentativelyintercalatedgraphite.Theprocedurefur thercomprisescatastrophicalydepressurizingthetentatively intercalatedgraphitetoprecipitatethecoatingagentfromthe Supercriticalfluid.Duringcatastrophicdepresurization,the Supercriticalfluidexpandsandexfoliatesthegraphitelayers whilethecoatingagentprecipitatesfromtheSupercritical fluidtocoverthelayers. US 8,696,938B2 Inanotherpreferedembodiment,theSupercriticalfluid AssuggestedbyGulari,etal.56,onemaychoosetouse containsaSurfactantordispersingagentdissolvedtherein. Surfactantsordispersingagentsthatcanbeusedinclude anionicSurfactants,non-ionicSurfactants,cationicSurfac tants,amphotericSurfactants,siliconeSurfactants,fluoro-sur factants,andpolymericSurfactants.ParticularlyusefulSur factantsforpracticingthepresentinventionincludeDuPont's Zonylseriesthatentailsanionic,cationic,non-ionic,and fluoro-basedspecies.Otherusefuldispersingagentsinclude Sodiumhexameta-phosphate,SodiumlignoSulphonate(e.g.,10 marketedunderthetradenamesVanisperseCBandMarasp erseCBOS-4fromBorregaardLignoTech),sodiumsulfate, Sodiumphosphate,andsodiumsulfonate.Presumably,aSur factantiscapableofrapidlycoveringthenewsurfacescreated duringthedelaminationorseparationbetweentwographene15 layers,therebypreventingthere-formationofinter-graphene VanderWaalsforces(re-joiningoftwographeneshets).This speculationwasconsistentwithourSurprisingobservation thatthepresenceofasurfactanttendstoresultinmuch thinnerNGPs ascomparedwiththesurfactant-frecase undercomparableprocessingconditions.Itisofsignificance tonotethatthesurfactantisnormallyeasytoremoveafterthe formationofNGPs;e.g.,viaheat-inducedvaporizationor simplewaterrinsing. Again,theprocedureofSupercriticalfluidintercalation25 (presurizingandheating)andexfoliation(depresurization) canberepeatedforatleastanothercycletofurtherreducethe thicknessofNGPs.Thecyclecaninclude(a)subjectingthe NGPmaterialtoasupercriticalfluid(containingasurfactant dissolvedtherein)atasecondtemperatureandasecondpres30 Sureforasecondperiodoftimeinapressureveselandthen (b)rapidlydepresurizingthefluidatafluidreleaserate suficientforefectingfurtherexfoliationoftheNGPmate rial.Again,thesecondtemperaturemaybediferentfromor thesameasthefirsttemperatureandthesecondpressuremay35 bediferentfromorthesameasthefirstpresure. acoatingagentthatcanbesolubilizedintheSupercritical fluidtodifusebetweenthegraphitelayers.Thepurposeof thiscoatingagent,accordingtoGulari,etal.56,wasto allowthecoatingagenttoexpandorSwelltheinterstitial spacesbetweengraphenelayers(toasistinintercalationand exfoliation)and,afterdepresurization,thecoatingagentwil precipitateouttoSurroundandisolatetheexfoliatedgraphene platelets.Thiscoatingagent(e.g.,apolymer)wileventually becomeapart(thematrix)ofacompositematerial.Generaly, thecoatingagentmayincludeapolymer,oligomer,prepoly mer,oramonomer.Inoneembodiment,thecoatingagentis poly-(dimethylsiloxane)(“PDMS)havingaweightaverage molecularweightofpreferablybetweenabout30,000and 200,000g/mole.Othersuitablecoatingagentsincludepoly (tetrafluoroethylene-co-hexafluoropropylene), poly-(per fluoro-propyleneoxide),poly-(diethyl-siloxane),poly-(dim ethylsilicone), poly-(phenylmethylsilicone), perfluoroalkylpolyethers,chloro-trifluoro-ethylene,andbro motrifluoroethylene. ItmaybenotedthatGulari,etal.56 didnotteachabout repeatingtheintercalationandexfoliationprocedureforthe purposeoffurtherreducingtheNGPthicknes. Thegraphiticmaterialparticlesandthecoatingagentmay bedisposedinahighpressureveselthatisisolatablefrom theatmosphere.Inthisembodiment,thegraphiteparticles compriseabout23to83weightpercentandthecoatingagent comprisesabout77to17weightpercentofmaterialplacedin thevesel.Theweightratioofgraphiteparticlestothecoating agentispreferablyatleastabout1:10.Then,thepressure veselissealedofffromtheatmosphere.Thisisfollowedby introducinghigh-presurecarbondioxideintothecompart mentwithCO,beingpresurizedintheveseltopreferably aboveapproximately1,070psig(7.4MPa).Then,thevesel isheatedtoatemperaturepreferablyaboveabout40°C. Theseconditionsdefineasupercriticalconditionofcarbon dioxidewherebythecoatingagentissolubilizedintheSuper criticalcarbondioxide. Inyetanotherpreferedembodimentofthepresentinven tion,theSupercriticalfluidcontainsacoatingagentdissolved therein.TheprocesscomprisesSupercriticalfluidintercala Withthecoatingagentbeingsolubilizedinthesupercriti Thecoatingagentmaycompriseamonomer,aprepolymer50 oroligomer,apolymer,aresin,acuringagent,oracombi nationthereof.Thisprocessisparticularlyusefulforthe Presumably,thelowviscosityandhighdifusivityofthe productionofthinNGP-reinforcedpolymercomposites.For thepreparationofathermosetresincomposite,itisadvanta geoustohaveaSupercriticalfluidcontainingacuringagent55 dissolvedtherein.Thecuringagent,typicalyalowmolecular weightspecies,canpenetrateintotheinter-graphenespaces (alsoreferedtoasinterstitialspaces),alongwiththeSuper criticalfluid.Upon-depressurization,thecuringagentwil precipitateouttocoverthenewlyformedgrapheneSurfaces.60 Inaditiontopossiblyservingtopreventthere-joiningof graphenelayers,thecuringagentalsoactstochangethe grapheneSurfaceproperties,promotingtheSubsequentwet tingofthegrapheneSurfacebyathermosettingresin(e.g., epoxide).Hence,theprocessfurthercomprisesmixingthe 65 curingagent-coveredgraphenematerialwithathermosetting CS1. Althoughthisconventionalrouteisusefulintermsofpro ducingpristineNGPsthatarecoveredwithacoatingagent, onehastoremovethiscoatingagentunlesthecoatingagent Supercriticalfluidallowsthecoatingagentsolubilizedtherein tobecomeintercalatedbetweenthegraphenelayersinthe graphiticmaterialunderSupercriticalconditions,thereby possiblyincreasingtheinterlayerspacing.Upondepressur ization,thesupercriticalfluidresidingintheinterstitial spacesrapidlyexpandandforcethelayerstoexfoliateor delaminatefromeachother,andthecoatingagentpreviously solubilizedinthesupercriticalfluidprecipitatestherefromto depositonthedelaminatedlayers,preventingreformationof thevanderWaalsforcesbetweengraphenelayers.Thatis,the coatingagentprecipitatesfromtheSupercriticalfluidand atachestothegraphenelayers.PDF Image | SCO2 Producing Nanographine Platelets
PDF Search Title:
SCO2 Producing Nanographine PlateletsOriginal File Name Searched:
US8696938.pdfDIY PDF Search: Google It | Yahoo | Bing
Sulfur Deposition on Carbon Nanofibers using Supercritical CO2 Sulfur Deposition on Carbon Nanofibers using Supercritical CO2. Gamma sulfur also known as mother of pearl sulfur and nacreous sulfur... More Info
CO2 Organic Rankine Cycle Experimenter Platform The supercritical CO2 phase change system is both a heat pump and organic rankine cycle which can be used for those purposes and as a supercritical extractor for advanced subcritical and supercritical extraction technology. Uses include producing nanoparticles, precious metal CO2 extraction, lithium battery recycling, and other applications... More Info
| CONTACT TEL: 608-238-6001 Email: greg@infinityturbine.com | RSS | AMP |
