PDF Publication Title:
Text from PDF Page: 017

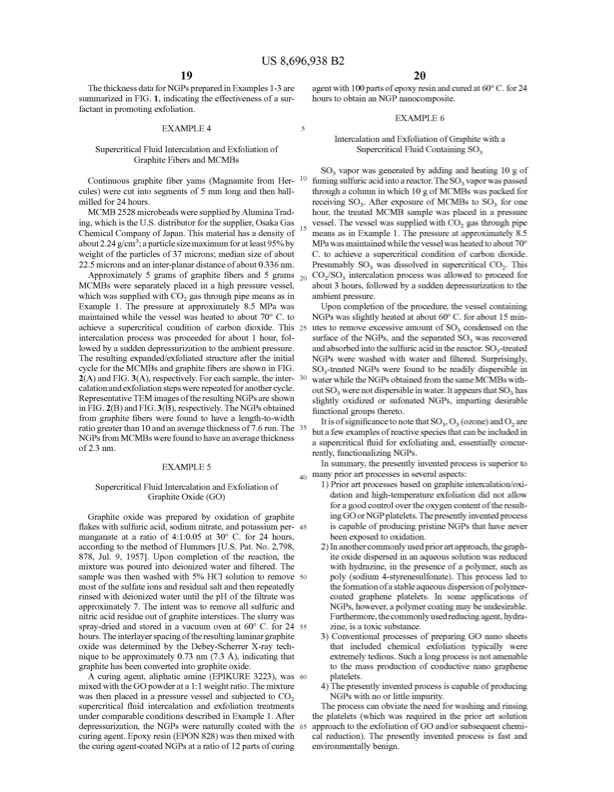

19 ThethicknesdataforNGPspreparedinExamples1-3are summarizedinFIG.1,indicatingtheefectivenesofasur factantinpromotingexfoliation. EXAMPLE 4 SupercriticalFluidIntercalationandExfoliationof GraphiteFibersandMCMBs Continuousgraphitefiberyams(MagnamitefromHer10 cules)werecutintosegmentsof5mmlongandthenball milledfor24hours. MCMB2528microbeadsweresuppliedbyAluminaTrad ing,whichistheU.S.distributorforthesuplier,OsakaGas 15 ChemicalCompanyofJapan.Thismaterialhasadensityof about2.24g/cm;aparticlesizemaximumforatleast95%by weightoftheparticlesof37microns;mediansizeofabout 22.5micronsandaninter-planardistanceofabout0.336mm. Approximately5gramsofgraphitefibersand5grams MCMBswereseparatelyplacedinahighpressurevesel, whichwasSuppliedwithCOgasthroughpipemeansasin Example 1. The pressure at approximately 8.5 MPa was maintained while the vessel was heated to about 70° C. to achieveasupercriticalconditionofcarbondioxide.This25 intercalationprocesswasproceededforabout1hour,fol lowedbyasuddendepresurizationtotheambientpresure. Theresultingexpanded/exfoliatedstructureaftertheinitial cyclefortheMCMBsandgraphitefibersareshowninFIG. 2(A)andFIG.3(A),respectively.Foreachsample,theinter30 calationandexfoliationstepswererepeatedforanothercycle. RepresentativeTEMimagesoftheresultingNGPsareshown inFIG.2(B)andFIG.3(B),respectively.TheNGPsobtained fromgraphitefiberswerefoundtohavealength-to-width ratiogreaterthan10andanaveragethicknessof7.6run.The35 NGPsfromMCMBswerefoundtohaveanaveragethicknes of2.3nm. EXAMPLE 5 SupercriticalFluidIntercalationandExfoliationof GraphiteOxide(GO) 20 agentwith100partsofepoxyresinandcuredat60°C.for24 hourstoobtainanNGPnanocomposite. EXAMPLE 6 IntercalationandExfoliationofGraphitewitha SupercriticalFluidContainingSO SO vaporwasgeneratedbyaddingandheating10gof fumingsulfuricacidintoareactor.TheSOvaporwaspassed throughacolumninwhich10gofMCMBswaspackedfor receivingSO.AfterexposureofMCMBstoSO forone hour,thetreatedMCMBsamplewasplacedinapressure vesel.TheveselwassuppliedwithCO gasthroughpipe meansasinExample1.Thepressureatapproximately8.5 MPa was maintainedwhilethevesselwas heatedtoabout70° C.toachieveasupercriticalconditionofcarbondioxide. PresumablySOwasdissolvedinsupercriticalCO.This CO/SOintercalationprocesswasallowedtoproceedfor about3hours,followedbyasuddendepresurizationtothe ambientpresure. Uponcompletionoftheprocedure,theveselcontaining NGPswasslightlyheatedatabout60°C.forabout15min utestoremoveexcessiveamountofSO condensedonthe surfaceoftheNGPs,andtheseparatedSOwasrecovered andabsorbedintothesulfuricacidinthereactor.SO-treated NGPs were washed with water and filtered. Surprisingly, SO-treatedNGPswerefoundtobereadilydispersiblein waterwhiletheNGPSobtainedfromthesameMCMBswith outSO werenotdispersibleinwater.ItappearsthatSO has slightly oxidized or sufonated NGPs, imparting desirable functionalgroupsthereto. ItisofsignificancetonotethatSOO (oZone)andO.are butafewexamplesofreactivespeciesthatcanbeincludedin aSupercriticalfluidforexfoliatingand,esentialyconcur rently,functionalizingNGPs. InSummary,thepresentlyinventedprocessisSuperiorto manypriorartprocessesinseveralaspects: 2)Inanothercommonlyusedpriorartapproach,thegraph iteoxidedispersedinanaqueoussolutionwasreduced withhydrazine,inthepresenceofapolymer,Suchas poly(sodium4-styrenesulfonate).Thisprocessledto theformationofastableaqueousdispersionofpolymer coated graphene platelets. In some aplications of NGPs,however,apolymercoatingmaybeundesirable. Furthermore,thecommonlyusedreducingagent,hydra Zine,isatoxicSubstance. US 8,696,938B2 40 Graphite oxide was prepared by oxidation of graphite flakeswithSulfuricacid,Sodiumnitrate,andpotassiumper manganateataratioof4:1:0.05at30°C.for24hours, accordingtothemethodofHummers U.S.Pat.No.2,798, 878, Jul. 9, 1957. Upon completion of the reaction, the mixturewaspouredintodeionizedwaterandfiltered.The samplewasthenwashedwith5% HClsolutiontoremove mostofthesulfateionsandresidualsaltandthenrepeatedly rinsedwithdeionizedwateruntilthepHofthefiltratewas approximately7.Theintentwastoremovealsulfuricand nitricacidresidueoutofgraphiteinterstices.Theslurywas spray-driedandstoredinavacuumovenat60°C.for24 hours.Theinterlayerspacingoftheresultinglaminargraphite oxidewasdeterminedbytheDebey-ScherrerX-raytech niquetobeaproximately0.73nm(7.3A),indicatingthat extremelytedious.Suchalongprocessisnotamenable graphitehasbeenconvertedintographiteoxide. tothemassproductionofconductivenanographene 45 50 55 A curingagent,aliphaticamine(EPIKURE3223),was 60 platelets. mixedwiththeGOpowderata1:1weightratio.Themixture 4)Thepresentlyinventedprocessiscapableofproducing wasthenplacedinapressureveselandSubjectedtoCO. NGPswithnoorlitleimpurity. Supercriticalfluidintercalationandexfoliationtreatments Theprocesscanobviatetheneedforwashingandrinsing undercomparableconditionsdescribedinExample1.After depresurization,theNGPswerenaturalycoatedwiththe65 curingagent.Epoxyresin(EPON828)wasthenmixedwith thecuringagent-coatedNGPSataratioof12partsofcuring theplatelets(whichwasrequiredinthepriorartsolution approachtotheexfoliationofGOand/orsubsequentchemi calreduction).Thepresentlyinventedprocessisfastand environmentallybenign. 1)Priorartprocessesbasedongraphiteintercalation/oxi dationandhigh-temperatureexfoliationdidnotallow foragoodcontrolovertheoxygencontentoftheresult ingGOorNGPplatelets.Thepresentlyinventedprocess iscapableofproducingpristineNGPsthathavenever beenexposedtooxidation. 3)ConventionalprocessesofpreparingGO nanoshets that included chemical exfoliation typicaly werePDF Image | SCO2 Producing Nanographine Platelets
PDF Search Title:
SCO2 Producing Nanographine PlateletsOriginal File Name Searched:
US8696938.pdfDIY PDF Search: Google It | Yahoo | Bing
Sulfur Deposition on Carbon Nanofibers using Supercritical CO2 Sulfur Deposition on Carbon Nanofibers using Supercritical CO2. Gamma sulfur also known as mother of pearl sulfur and nacreous sulfur... More Info
CO2 Organic Rankine Cycle Experimenter Platform The supercritical CO2 phase change system is both a heat pump and organic rankine cycle which can be used for those purposes and as a supercritical extractor for advanced subcritical and supercritical extraction technology. Uses include producing nanoparticles, precious metal CO2 extraction, lithium battery recycling, and other applications... More Info
| CONTACT TEL: 608-238-6001 Email: greg@infinityturbine.com | RSS | AMP |
