PDF Publication Title:
Text from PDF Page: 009

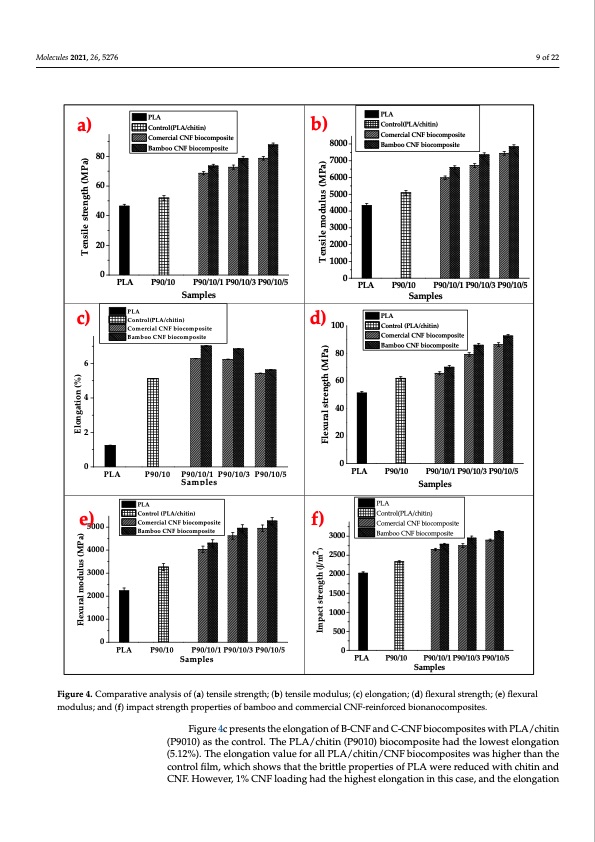

Molecules 2021, 26, 5276 9 of 22 Molecules 2021, 26, x FOR PEER REVIEW 9 of 23 a) 80 60 40 20 0 PLA P90/10 P90/10/1 P90/10/3 P90/10/5 Samples PLA Control(PLA/chitin) Comercial CNF biocomposite Bamboo CNF biocomposite b) 8000 7000 6000 5000 4000 3000 2000 1000 0 PLA P90/10 Samples P90/10/1 P90/10/3 P90/10/5 PLA Control(PLA/chitin) Comercial CNF biocomposite Bamboo CNF biocomposite c) 6 4 2 0 PLA P90/10 P90/10/1 P90/10/3 P90/10/5 Samples PLA Control(PLA/chitin) Comercial CNF biocomposite Bamboo CNF biocomposite d) 100 80 60 40 20 0 PLA P90/10 P90/10/1 P90/10/3 P90/10/5 Samples PLA Control (PLA/chitin) Comercial CNF biocomposite Bamboo CNF biocomposite e) 5000 4000 3000 2000 1000 0 PLA P90/10 P90/10/1 P90/10/3 P90/10/5 Samples PLA Control (PLA/chitin) Comercial CNF biocomposite Bamboo CNF biocomposite f) 3000 2500 2000 1500 1000 500 0 PLA P90/10 P90/10/1 P90/10/3 P90/10/5 Samples PLA Control(PLA/chitin) Comercial CNF biocomposite Bamboo CNF biocomposite Figure 4. Comparative analysis of (a) tensile strength; (b) tensile modulus; (c) elongation; (d) flexural strength; (e) flexural Figure 4. Comparative analysis of (a) tensile strength; (b) tensile modulus; (c) elongation; (d) flexural strength; (e) flexural modulus; and (f) impact strength properties of bamboo and commercial CNF‐reinforced bionanocomposites. modulus; and (f) impact strength properties of bamboo and commercial CNF-reinforced bionanocomposites. The results of the comparative tensile properties of bamboo and commercial CNF Figure 4c presents the elongation of B-CNF and C-CNF biocomposites with PLA/chitin reinforcement in PLA/chitin composite are presented in Figure 3. The PLA/chitin (P9010) (P9010) as the control. The PLA/chitin (P9010) biocomposite had the lowest elongation biocomposite had the lowest tensile strength, of 51.06 MPa, while the 5% CNF loading (5.12%). The elongation value for all PLA/chitin/CNF biocomposites was higher than the had the highest tensile strength. The B‐CNF biocomposites were observed with better re‐ control film, which shows that the brittle properties of PLA were reduced with chitin and inforcement properties than the C‐CNF biocomposites at the same CNF percentage load‐ CNF. However, 1% CNF loading had the highest elongation in this case, and the elongation ings. The B‐CNF biocomposites showed better tensile strength properties than the C‐ Flexural modulus (MPa) Elongation (%) Tensile strength (MPa) Impact strength (J/m2) Flexural strength (MPa) Tensile modulus (MPa)PDF Image | Supercritical Carbon Dioxide Isolation of Cellulose Nanofibre
PDF Search Title:
Supercritical Carbon Dioxide Isolation of Cellulose NanofibreOriginal File Name Searched:
molecules-26-05276-v2.pdfDIY PDF Search: Google It | Yahoo | Bing
Sulfur Deposition on Carbon Nanofibers using Supercritical CO2 Sulfur Deposition on Carbon Nanofibers using Supercritical CO2. Gamma sulfur also known as mother of pearl sulfur and nacreous sulfur... More Info
CO2 Organic Rankine Cycle Experimenter Platform The supercritical CO2 phase change system is both a heat pump and organic rankine cycle which can be used for those purposes and as a supercritical extractor for advanced subcritical and supercritical extraction technology. Uses include producing nanoparticles, precious metal CO2 extraction, lithium battery recycling, and other applications... More Info
| CONTACT TEL: 608-238-6001 Email: greg@infinityturbine.com | RSS | AMP |
