PDF Publication Title:
Text from PDF Page: 127

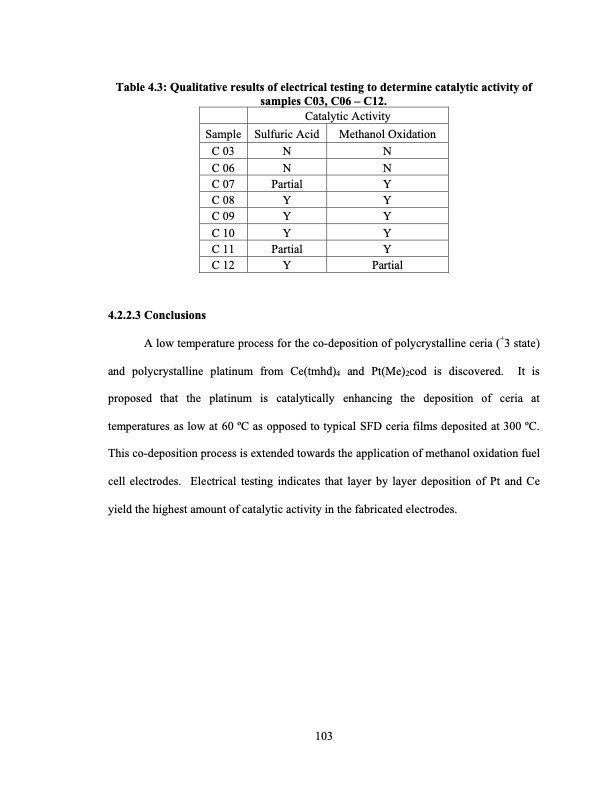

Table 4.3: Qualitative results of electrical testing to determine catalytic activity of samples C03, C06 – C12. Catalytic Activity Sample C03 C06 C07 C08 C09 C10 C11 C12 4.2.2.3 Conclusions A low temperature and polycrystalline platinum from Ce(tmhd)4 and Pt(Me)2cod is discovered. It is proposed that the platinum is catalytically enhancing the deposition of ceria at temperatures as low at 60 oC as opposed to typical SFD ceria films deposited at 300 oC. This co-deposition process is extended towards the application of methanol oxidation fuel cell electrodes. Electrical testing indicates that layer by layer deposition of Pt and Ce yield the highest amount of catalytic activity in the fabricated electrodes. Sulfuric Acid N N Partial Y Y Y Partial Y Methanol Oxidation N N Y Y Y Y Y Partial process for the co-deposition of polycrystalline ceria (+3 state) 103PDF Image | Supercritical Fluid Deposition Of Thin Metal Films
