PDF Publication Title:

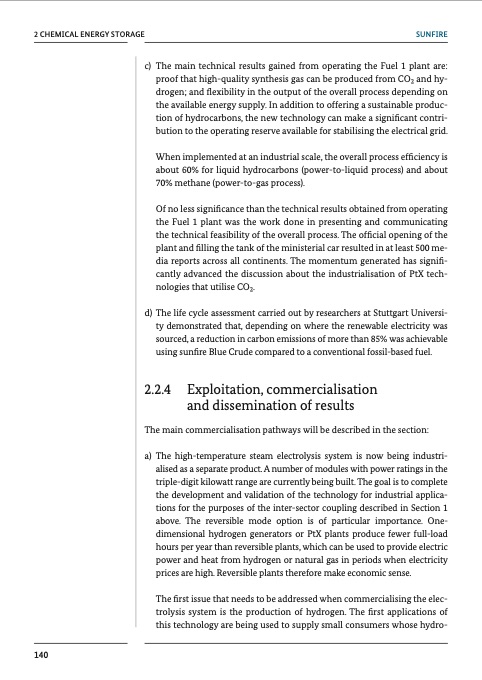

Text from PDF Page: 143
2 CHEMICAL ENERGY STORAGE SUNFIRE c) The main technical results gained from operating the Fuel 1 plant are: proof that high-quality synthesis gas can be produced from CO2 and hy- drogen; and flexibility in the output of the overall process depending on the available energy supply. In addition to offering a sustainable produc- tion of hydrocarbons, the new technology can make a significant contri- bution to the operating reserve available for stabilising the electrical grid. When implemented at an industrial scale, the overall process efficiency is about 60% for liquid hydrocarbons (power-to-liquid process) and about 70% methane (power-to-gas process). Of no less significance than the technical results obtained from operating the Fuel 1 plant was the work done in presenting and communicating the technical feasibility of the overall process. The official opening of the plant and filling the tank of the ministerial car resulted in at least 500 me- dia reports across all continents. The momentum generated has signifi- cantly advanced the discussion about the industrialisation of PtX tech- nologies that utilise CO2. d) The life cycle assessment carried out by researchers at Stuttgart Universi- ty demonstrated that, depending on where the renewable electricity was sourced, a reduction in carbon emissions of more than 85% was achievable using sunfire Blue Crude compared to a conventional fossil-based fuel. 2.2.4 Exploitation, commercialisation and dissemination of results The main commercialisation pathways will be described in the section: a) The high-temperature steam electrolysis system is now being industri- alised as a separate product. A number of modules with power ratings in the triple-digit kilowatt range are currently being built. The goal is to complete the development and validation of the technology for industrial applica- tions for the purposes of the inter-sector coupling described in Section 1 above. The reversible mode option is of particular importance. One- dimensional hydrogen generators or PtX plants produce fewer full-load hours per year than reversible plants, which can be used to provide electric power and heat from hydrogen or natural gas in periods when electricity prices are high. Reversible plants therefore make economic sense. The first issue that needs to be addressed when commercialising the elec- trolysis system is the production of hydrogen. The first applications of this technology are being used to supply small consumers whose hydro- 140PDF Image | Chemical Processes and Use of CO2
PDF Search Title:
Chemical Processes and Use of CO2Original File Name Searched:
CO2_Buch_engl.pdfDIY PDF Search: Google It | Yahoo | Bing
