PDF Publication Title:
Text from PDF Page: 020

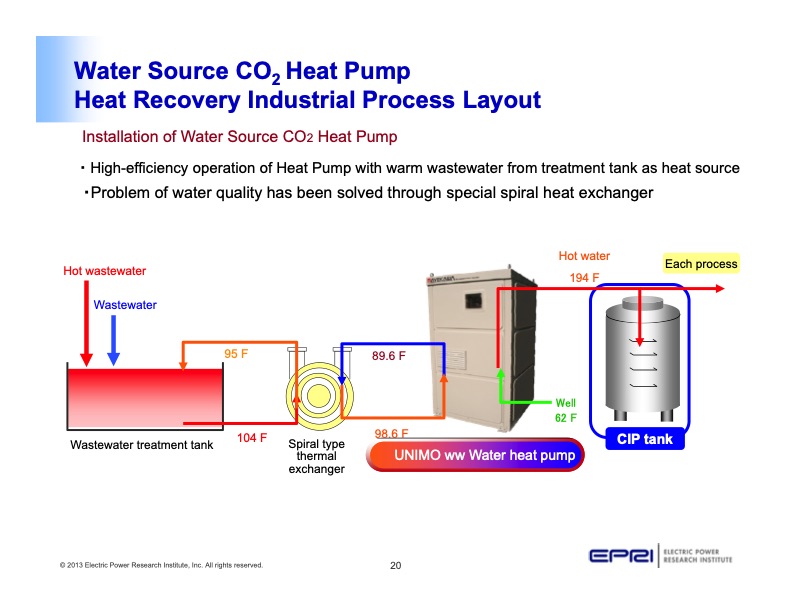

Water Source CO2 Heat Pump Heat Recovery Industrial Process Layout Installation of Water Source CO2 Heat Pump ・High-efficiency operation of Heat Pump with warm wastewater from treatment tank as heat source ・Problem of water quality has been solved through special spiral heat exchanger Hot wastewater Hot water 194 F Each process Wastewater Wastewater treatment tank 104 F Spiral type thermal exchanger 98.6 F CIP tank © 2013 Electric Power Research Institute, Inc. All rights reserved. 20 95 F 89.6 F UNIMO ww Water heat pump Well 62 FPDF Image | CO2 Heat Pump Water Heaters for Industrial Applications
PDF Search Title:
CO2 Heat Pump Water Heaters for Industrial ApplicationsOriginal File Name Searched:
Davis_Session1B_HWF16_2.22.16.pdfDIY PDF Search: Google It | Yahoo | Bing
