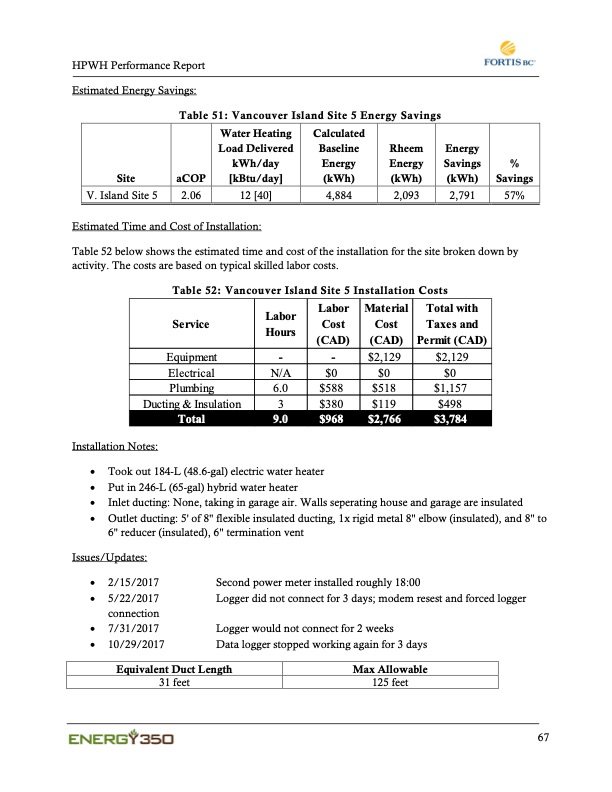

Text from PDF Page: 078
HPWH Performance Report Estimated Energy Savings: Table 51: Vancouver Island Site 5 Energy Savings V. Island Site 5 2.06 12 [40] 4,884 2,093 2,791 57% Estimated Time and Cost of Installation: Table 52 below shows the estimated time and cost of the installation for the site broken down by activity. The costs are based on typical skilled labor costs. Table 52: Vancouver Island Site 5 Installation Costs Site aCOP Water Heating Load Delivered kWh/day [kBtu/day] Calculated Baseline Energy (kWh) Rheem Energy (kWh) Energy Savings (kWh) % Savings Se rvice Labor Hours Labor Cost (CAD) Mate rial Cost (CAD) Total with Taxes and Permit (CAD) Equipment - - $2,129 $2,129 Electrical N/A $0 $0 $0 Plumbing 6.0 $588 $518 $1,157 Ducting & Insulation 3 $380 $119 $498 Total 9.0 $968 $2,766 $3,784 Installation Notes: • Took out 184-L (48.6-gal) electric water heater • Put in 246-L (65-gal) hybrid water heater • Inlet ducting: None, taking in garage air. Walls seperating house and garage are insulated • Outlet ducting: 5' of 8" flexible insulated ducting, 1x rigid metal 8" elbow (insulated), and 8" to 6" reducer (insulated), 6" termination vent Issues/Updates: • 2/15/2017 • 5/22/2017 connection • 7/31/2017 • 10/29/2017 Second power meter installed roughly 18:00 Logger did not connect for 3 days; modem resest and forced logger Logger would not connect for 2 weeks Data logger stopped working again for 3 days Equivalent Duct Length Max Allowable 31 feet 125 feet 67PDF Image | CO2 Integrated Heat Pump Water Heater
