PDF Publication Title:
Text from PDF Page: 077

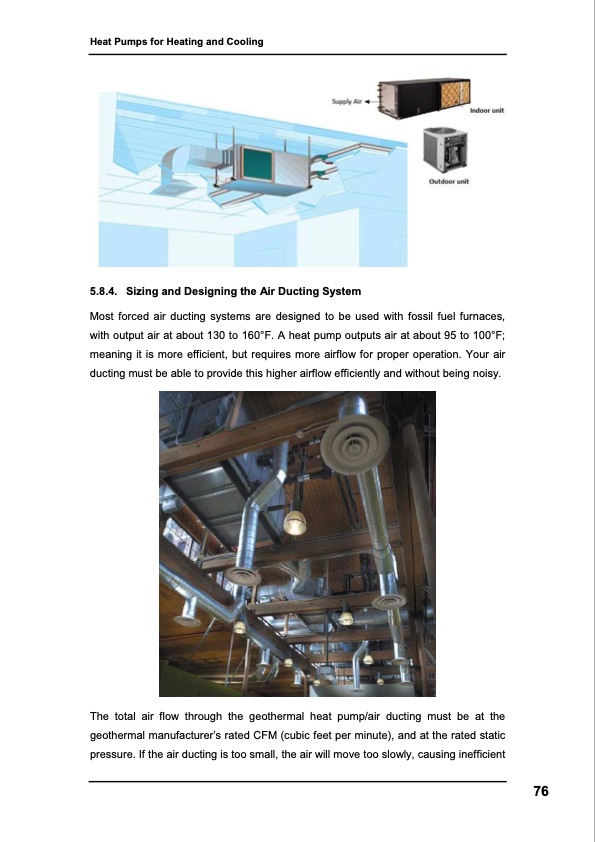

Heat Pumps for Heating and Cooling 5.8.4. Sizing and Designing the Air Ducting System Most forced air ducting systems are designed to be used with fossil fuel furnaces, with output air at about 130 to 160°F. A heat pump outputs air at about 95 to 100°F; meaning it is more efficient, but requires more airflow for proper operation. Your air ducting must be able to provide this higher airflow efficiently and without being noisy. The total air flow through the geothermal heat pump/air ducting must be at the geothermal manufacturer’s rated CFM (cubic feet per minute), and at the rated static pressure. If the air ducting is too small, the air will move too slowly, causing inefficient 76PDF Image | Heat Pumps for Heating and Cooling
PDF Search Title:
Heat Pumps for Heating and CoolingOriginal File Name Searched:
heat-pumps-for-cooling-r1.pdfDIY PDF Search: Google It | Yahoo | Bing
