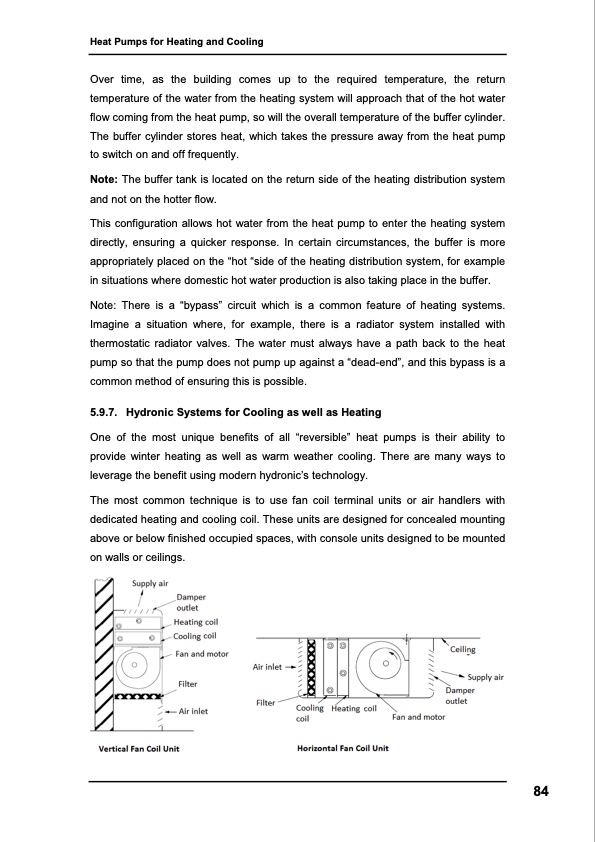

Heat Pumps for Heating and Cooling Over time, as the building comes up to the required temperature, the return temperature of the water from the heating system will approach that of the hot water flow coming from the heat pump, so will the overall temperature of the buffer cylinder. The buffer cylinder stores heat, which takes the pressure away from the heat pump to switch on and off frequently. Note: The buffer tank is located on the return side of the heating distribution system and not on the hotter flow. This configuration allows hot water from the heat pump to enter the heating system directly, ensuring a quicker response. In certain circumstances, the buffer is more appropriately placed on the “hot “side of the heating distribution system, for example in situations where domestic hot water production is also taking place in the buffer. Note: There is a “bypass” circuit which is a common feature of heating systems. Imagine a situation where, for example, there is a radiator system installed with thermostatic radiator valves. The water must always have a path back to the heat pump so that the pump does not pump up against a “dead-end”, and this bypass is a common method of ensuring this is possible. 5.9.7. Hydronic Systems for Cooling as well as Heating One of the most unique benefits of all “reversible” heat pumps is their ability to provide winter heating as well as warm weather cooling. There are many ways to leverage the benefit using modern hydronic’s technology. The most common technique is to use fan coil terminal units or air handlers with dedicated heating and cooling coil. These units are designed for concealed mounting above or below finished occupied spaces, with console units designed to be mounted on walls or ceilings. 84PDF Image | Heat Pumps for Heating and Cooling
