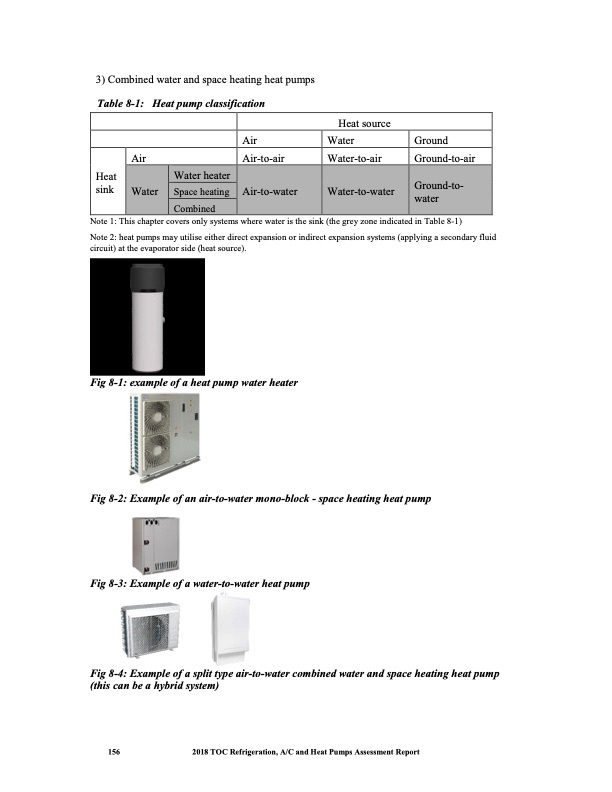

3) Combined water and space heating heat pumps Table 8-1: Heat pump classification Heat source Air Water Ground Ground-to-air Air Air-to-air Water-to-air Water Water heater Air-to-water Water-to-water Ground-to- water Space heating Combined Heat sink Note 1: This chapter covers only systems where water is the sink (the grey zone indicated in Table 8-1) Note 2: heat pumps may utilise either direct expansion or indirect expansion systems (applying a secondary fluid circuit) at the evaporator side (heat source). Fig 8-1: example of a heat pump water heater Fig 8-2: Example of an air-to-water mono-block - space heating heat pump Fig 8-3: Example of a water-to-water heat pump Fig 8-4: Example of a split type air-to-water combined water and space heating heat pump (this can be a hybrid system) 156 2018 TOC Refrigeration, A/C and Heat Pumps Assessment ReportPDF Image | Heat Pumps Technical Options
