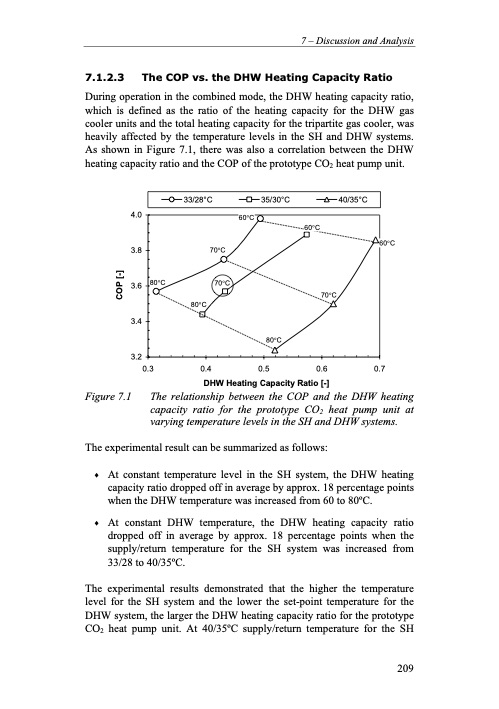

7.1.2.3 The COP vs. the DHW Heating Capacity Ratio During operation in the combined mode, the DHW heating capacity ratio, which is defined as the ratio of the heating capacity for the DHW gas cooler units and the total heating capacity for the tripartite gas cooler, was heavily affected by the temperature levels in the SH and DHW systems. As shown in Figure 7.1, there was also a correlation between the DHW heating capacity ratio and the COP of the prototype CO2 heat pump unit. 7 – Discussion and Analysis 4.0 3.8 3.6 3.4 3.2 Figure 7.1 60°C 33/28°C 35/30°C 40/35°C 80°C 60°C 70°C 70°C 60°C 70°C 80°C 80°C 0.3 0.4 0.5 0.6 0.7 DHW Heating Capacity Ratio [-] The relationship between the COP and the DHW heating capacity ratio for the prototype CO2 heat pump unit at varying temperature levels in the SH and DHW systems. The experimental result can be summarized as follows: ♦ At constant temperature level in the SH system, the DHW heating capacity ratio dropped off in average by approx. 18 percentage points when the DHW temperature was increased from 60 to 80oC. ♦ At constant DHW temperature, the DHW heating capacity ratio dropped off in average by approx. 18 percentage points when the supply/return temperature for the SH system was increased from 33/28 to 40/35oC. The experimental results demonstrated that the higher the temperature level for the SH system and the lower the set-point temperature for the DHW system, the larger the DHW heating capacity ratio for the prototype CO2 heat pump unit. At 40/35oC supply/return temperature for the SH 209 COP [-]PDF Image | Residential CO2 Heat Pump System for Combined
