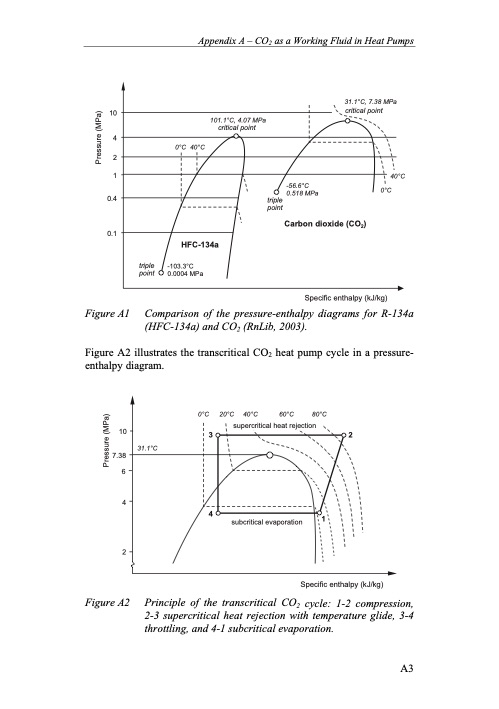

Appendix A – CO2 as a Working Fluid in Heat Pumps 10 4 2 1 0.4 0.1 Figure A1 31.1°C, 7.38 MPa critical point 0°C 40°C HFC-134a -103.3°C 0.0004 MPa -56.6°C 0.518 MPa triple point 40°C 0°C Carbon dioxide (CO2) triple point 101.1°C, 4.07 MPa critical point Comparison of the pressure-enthalpy diagrams for R-134a (HFC-134a) and CO2 (RnLib, 2003). Figure A2 illustrates the transcritical CO2 heat pump cycle in a pressure- enthalpy diagram. Specific enthalpy (kJ/kg) 10 31.1°C 7.38 6 4 2 Figure A2 0°C 20°C 40°C 60°C 80°C supercritical heat rejection 32 4 1 Specific enthalpy (kJ/kg) subcritical evaporation Principle of the transcritical CO2 cycle: 1-2 compression, 2-3 supercritical heat rejection with temperature glide, 3-4 throttling, and 4-1 subcritical evaporation. A3 Pressure (MPa) Pressure (MPa)PDF Image | Residential CO2 Heat Pump System for Combined
