Text from PDF Page: 279

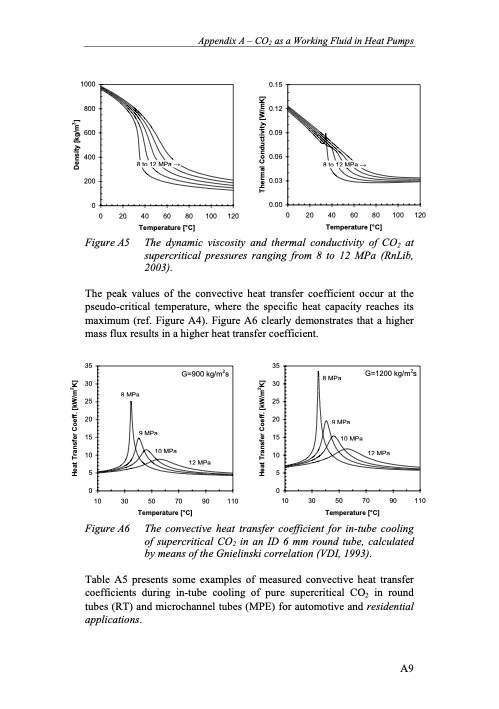

Appendix A – CO2 as a Working Fluid in Heat Pumps 1000 800 600 400 200 0 8 to 12 MPa → 0 20 40 60 80 100 120 Temperature [°C] 0.15 0.12 0.09 0.06 0.03 0.00 8 to 12 MPa → 0 20 40 60 80 100 120 Temperature [°C] Figure A5 The dynamic viscosity and thermal conductivity of CO2 at supercritical pressures ranging from 8 to 12 MPa (RnLib, 2003). The peak values of the convective heat transfer coefficient occur at the pseudo-critical temperature, where the specific heat capacity reaches its maximum (ref. Figure A4). Figure A6 clearly demonstrates that a higher mass flux results in a higher heat transfer coefficient. 35 30 8 MPa 25 G=900 kg/m2s 20 15 10 5 9 MPa 10 MPa 12 MPa 0 10 30 50 70 90 110 Temperature [°C] 35 30 25 20 15 10 5 8 MPa G=1200 kg/m2s 9 MPa 10 MPa 12 MPa 0 10 30 50 70 90 110 Temperature [°C] Figure A6 The convective heat transfer coefficient for in-tube cooling of supercritical CO2 in an ID 6 mm round tube, calculated by means of the Gnielinski correlation (VDI, 1993). Table A5 presents some examples of measured convective heat transfer coefficients during in-tube cooling of pure supercritical CO2 in round tubes (RT) and microchannel tubes (MPE) for automotive and residential applications. A9 Heat Transfer Coeff. [kW/m2K] Density [kg/m3] Heat Transfer Coeff. [kW/m2K] Thermal Conductivity [W/mK]PDF Image | Residential CO2 Heat Pump System for Combined
