Text from PDF Page: 293

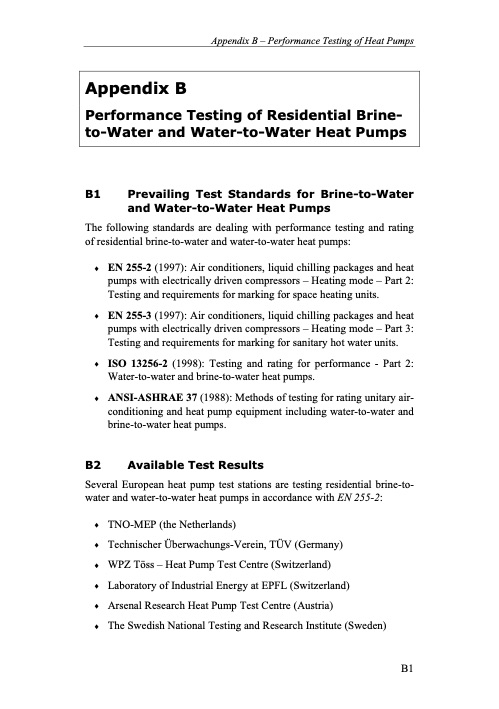

Appendix B – Performance Testing of Heat Pumps Appendix B Performance Testing of Residential Brine- to-Water and Water-to-Water Heat Pumps B1 Prevailing Test Standards for Brine-to-Water and Water-to-Water Heat Pumps The following standards are dealing with performance testing and rating of residential brine-to-water and water-to-water heat pumps: ♦ EN 255-2 (1997): Air conditioners, liquid chilling packages and heat pumps with electrically driven compressors – Heating mode – Part 2: Testing and requirements for marking for space heating units. ♦ EN 255-3 (1997): Air conditioners, liquid chilling packages and heat pumps with electrically driven compressors – Heating mode – Part 3: Testing and requirements for marking for sanitary hot water units. ♦ ISO 13256-2 (1998): Testing and rating for performance - Part 2: Water-to-water and brine-to-water heat pumps. ♦ ANSI-ASHRAE 37 (1988): Methods of testing for rating unitary air- conditioning and heat pump equipment including water-to-water and brine-to-water heat pumps. B2 Available Test Results Several European heat pump test stations are testing residential brine-to- water and water-to-water heat pumps in accordance with EN 255-2: ♦ TNO-MEP (the Netherlands) ♦ Technischer Überwachungs-Verein, TÜV (Germany) ♦ WPZ Töss – Heat Pump Test Centre (Switzerland) ♦ Laboratory of Industrial Energy at EPFL (Switzerland) ♦ Arsenal Research Heat Pump Test Centre (Austria) ♦ The Swedish National Testing and Research Institute (Sweden) B1PDF Image | Residential CO2 Heat Pump System for Combined
