Text from PDF Page: 007

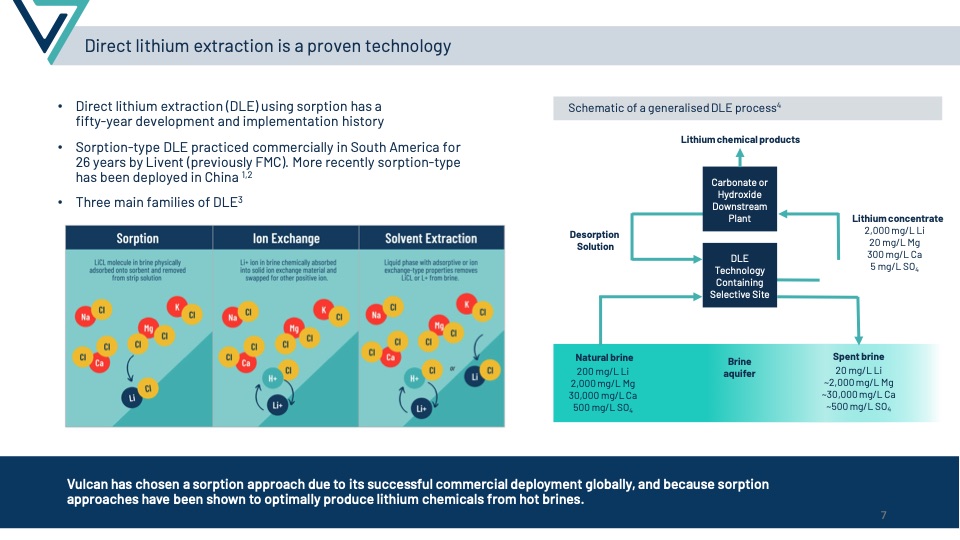

Direct lithium extraction is a proven technology • Direct lithium extraction (DLE) using sorption has a fifty-year development and implementation history • Sorption-type DLE practiced commercially in South America for 26 years by Livent (previously FMC). More recently sorption-type has been deployed in China 1,2 • Three main families of DLE3 Schematic of a generalised DLE process4 Desorption Solution Lithium concentrate 2,000 mg/L Li 20 mg/L Mg 300 mg/L Ca 5 mg/L SO4 Lithium chemical products Carbonate or Hydroxide Downstream Plant DLE Technology Containing Selective Site Natural brine 200 mg/L Li 2,000 mg/L Mg 30,000 mg/L Ca 500 mg/L SO4 Brine aquifer Spent brine 20 mg/L Li ~2,000 mg/L Mg ~30,000 mg/L Ca ~500 mg/L SO4 Vulcan has chosen a sorption approach due to its successful commercial deployment globally, and because sorption approaches have been shown to optimally produce lithium chemicals from hot brines. 7PDF Image | Direct Lithium Extraction
