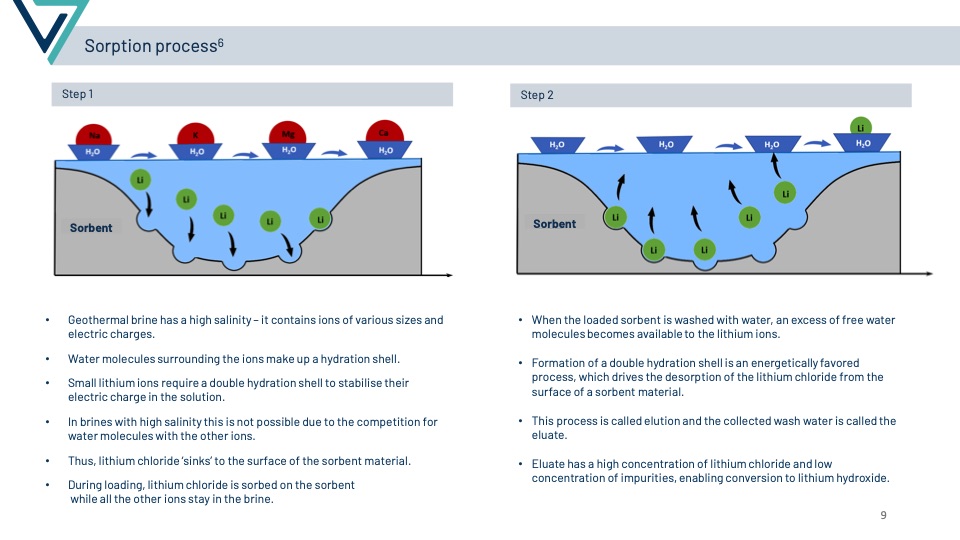

Sorption process6 Step 1 Step 2 Sorbent • Geothermal brine has a high salinity – it contains ions of various sizes and electric charges. • Water molecules surrounding the ions make up a hydration shell. • Small lithium ions require a double hydration shell to stabilise their electric charge in the solution. • In brines with high salinity this is not possible due to the competition for water molecules with the other ions. • Thus, lithium chloride ‘sinks’ to the surface of the sorbent material. • During loading, lithium chloride is sorbed on the sorbent while all the other ions stay in the brine. Sorbent • When the loaded sorbent is washed with water, an excess of free water molecules becomes available to the lithium ions. • Formation of a double hydration shell is an energetically favored process, which drives the desorption of the lithium chloride from the surface of a sorbent material. • This process is called elution and the collected wash water is called the eluate. • Eluate has a high concentration of lithium chloride and low concentration of impurities, enabling conversion to lithium hydroxide. 9PDF Image | Direct Lithium Extraction
