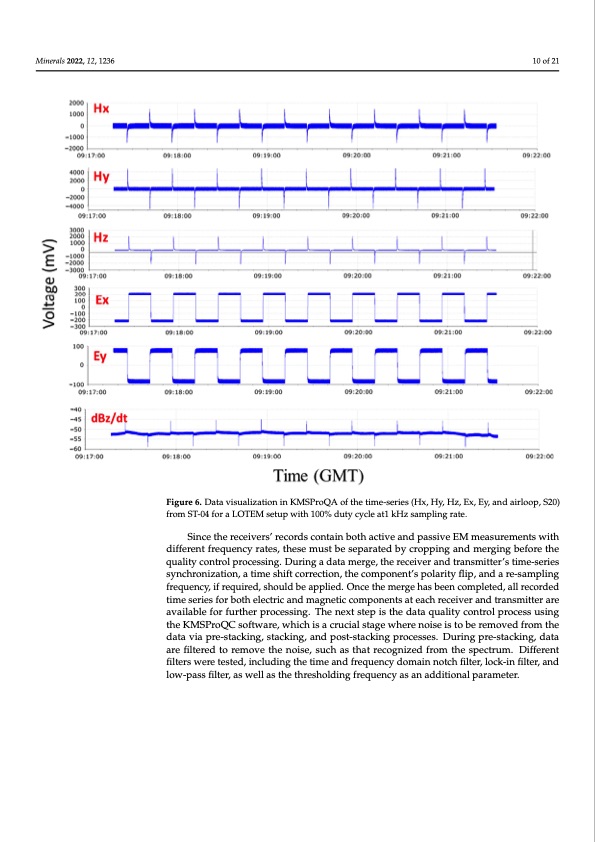

Minerals 2022, 12, x FOR PEER REVIEW 10 of 21 Minerals 2022, 12, 1236 10 of 21 Figure 6. Data visualization in KMSProQA of the time-series (Hx, Hy, Hz, Ex, Ey, and airloop, S20) Figure 6. Data visualization in KMSProQA of the time-series (Hx, Hy, Hz, Ex, Ey, and airloop, S20) from ST-04 for a LOTEM setup with 100% duty cycle at1 kHz sampling rate. from ST-04 for a LOTEM setup with 100% duty cycle at1 kHz sampling rate. Since the receivers’ records contain both active and passive EM measurements with different frequency rates, these must be separated by cropping and merging before the quality control processing. During a data merge, the receiver and transmitter’s time-series synchronization, a time shift correction, the component’s polarity flip, and a re-sampling frequency, if required, should be applied. Once the merge has been completed, all recorded time series for both electric and magnetic components at each receiver and transmitter are available for further processing. The next step is the data quality control process using the KMSProQC software, which is a crucial stage where noise is to be removed from the data via pre-stacking, stacking, and post-stacking processes. During pre-stacking, data are filtered to remove the noise, such as that recognized from the spectrum. Different filters were tested, including the time and frequency domain notch filter, lock-in filter, and low-pass filter, as well as the thresholding frequency as an additional parameter.PDF Image | First High-Power CSEM
