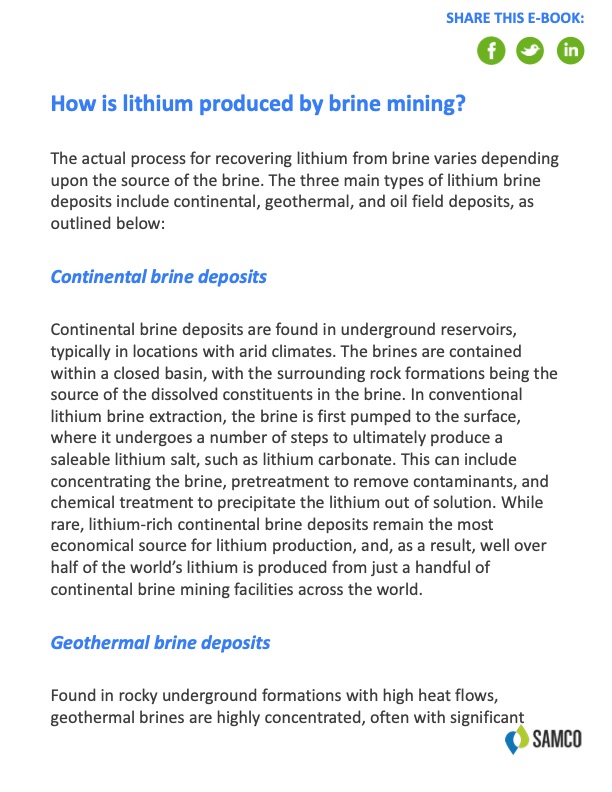

SHARE THIS E-BOOK: How is lithium produced by brine mining? The actual process for recovering lithium from brine varies depending upon the source of the brine. The three main types of lithium brine deposits include continental, geothermal, and oil field deposits, as outlined below: Continental brine deposits Continental brine deposits are found in underground reservoirs, typically in locations with arid climates. The brines are contained within a closed basin, with the surrounding rock formations being the source of the dissolved constituents in the brine. In conventional lithium brine extraction, the brine is first pumped to the surface, where it undergoes a number of steps to ultimately produce a saleable lithium salt, such as lithium carbonate. This can include concentrating the brine, pretreatment to remove contaminants, and chemical treatment to precipitate the lithium out of solution. While rare, lithium-rich continental brine deposits remain the most economical source for lithium production, and, as a result, well over half of the world’s lithium is produced from just a handful of continental brine mining facilities across the world. Geothermal brine deposits Found in rocky underground formations with high heat flows, geothermal brines are highly concentrated, often with significantPDF Image | LITHIUM EXTRACTION from Samco
