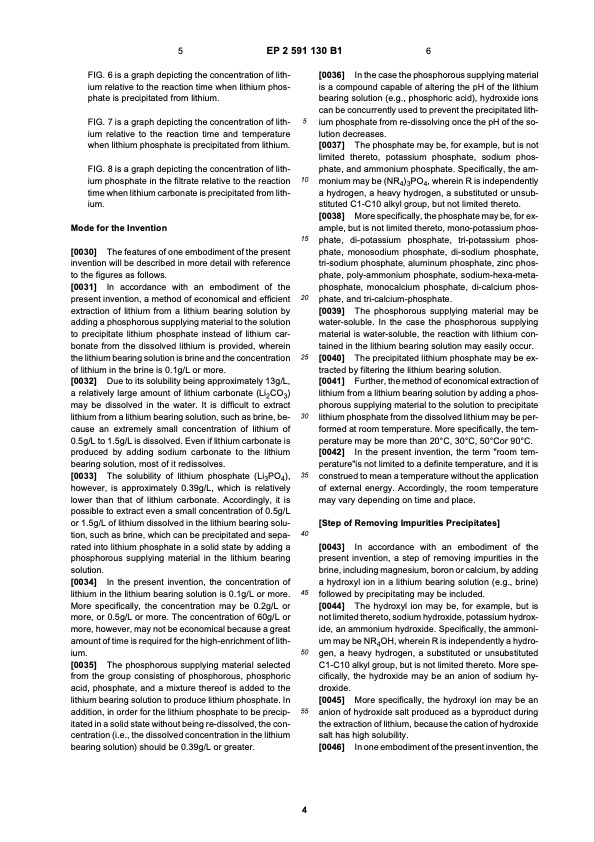

5 EP 2 591 130 B1 6 FIG. 6 is a graph depicting the concentration of lith- ium relative to the reaction time when lithium phos- phate is precipitated from lithium. FIG. 7 is a graph depicting the concentration of lith- ium relative to the reaction time and temperature when lithium phosphate is precipitated from lithium. FIG. 8 is a graph depicting the concentration of lith- ium phosphate in the filtrate relative to the reaction time when lithium carbonate is precipitated from lith- ium. Mode for the Invention [0030] The features of one embodiment of the present invention will be described in more detail with reference to the figures as follows. [0031] In accordance with an embodiment of the present invention, a method of economical and efficient extraction of lithium from a lithium bearing solution by adding a phosphorous supplying material to the solution to precipitate lithium phosphate instead of lithium car- bonate from the dissolved lithium is provided, wherein the lithium bearing solution is brine and the concentration of lithium in the brine is 0.1g/L or more. [0032] Due to its solubility being approximately 13g/L, a relatively large amount of lithium carbonate (Li2CO3) may be dissolved in the water. It is difficult to extract lithium from a lithium bearing solution, such as brine, be- cause an extremely small concentration of lithium of 0.5g/L to 1.5g/L is dissolved. Even if lithium carbonate is produced by adding sodium carbonate to the lithium bearing solution, most of it redissolves. [0033] The solubility of lithium phosphate (Li3PO4), however, is approximately 0.39g/L, which is relatively lower than that of lithium carbonate. Accordingly, it is possible to extract even a small concentration of 0.5g/L or 1.5g/L of lithium dissolved in the lithium bearing solu- tion, such as brine, which can be precipitated and sepa- rated into lithium phosphate in a solid state by adding a phosphorous supplying material in the lithium bearing solution. [0034] In the present invention, the concentration of lithium in the lithium bearing solution is 0.1g/L or more. More specifically, the concentration may be 0.2g/L or more, or 0.5g/L or more. The concentration of 60g/L or more, however, may not be economical because a great amount of time is required for the high-enrichment of lith- ium. [0035] The phosphorous supplying material selected from the group consisting of phosphorous, phosphoric acid, phosphate, and a mixture thereof is added to the lithium bearing solution to produce lithium phosphate. In addition, in order for the lithium phosphate to be precip- itated in a solid state without being re-dissolved, the con- centration (i.e., the dissolved concentration in the lithium bearing solution) should be 0.39g/L or greater. [0036] In the case the phosphorous supplying material is a compound capable of altering the pH of the lithium bearing solution (e.g., phosphoric acid), hydroxide ions can be concurrently used to prevent the precipitated lith- ium phosphate from re-dissolving once the pH of the so- lution decreases. [0037] The phosphate may be, for example, but is not limited thereto, potassium phosphate, sodium phos- phate, and ammonium phosphate. Specifically, the am- monium may be (NR4)3PO4, wherein R is independently a hydrogen, a heavy hydrogen, a substituted or unsub- stituted C1-C10 alkyl group, but not limited thereto. [0038] More specifically, the phosphate may be, for ex- ample, but is not limited thereto, mono-potassium phos- phate, di-potassium phosphate, tri-potassium phos- phate, monosodium phosphate, di-sodium phosphate, tri-sodium phosphate, aluminum phosphate, zinc phos- phate, poly-ammonium phosphate, sodium-hexa-meta- phosphate, monocalcium phosphate, di-calcium phos- phate, and tri-calcium-phosphate. [0039] The phosphorous supplying material may be water-soluble. In the case the phosphorous supplying material is water-soluble, the reaction with lithium con- tained in the lithium bearing solution may easily occur. [0040] The precipitated lithium phosphate may be ex- tracted by filtering the lithium bearing solution. [0041] Further, the method of economical extraction of lithium from a lithium bearing solution by adding a phos- phorous supplying material to the solution to precipitate lithium phosphate from the dissolved lithium may be per- formed at room temperature. More specifically, the tem- perature may be more than 20°C, 30°C, 50°Cor 90°C. [0042] In the present invention, the term "room tem- perature"is not limited to a definite temperature, and it is construed to mean a temperature without the application of external energy. Accordingly, the room temperature may vary depending on time and place. [Step of Removing Impurities Precipitates] [0043] In accordance with an embodiment of the present invention, a step of removing impurities in the brine, including magnesium, boron or calcium, by adding a hydroxyl ion in a lithium bearing solution (e.g., brine) followed by precipitating may be included. [0044] The hydroxyl ion may be, for example, but is not limited thereto, sodium hydroxide, potassium hydrox- ide, an ammonium hydroxide. Specifically, the ammoni- um may be NR4OH, wherein R is independently a hydro- gen, a heavy hydrogen, a substituted or unsubstituted C1-C10 alkyl group, but is not limited thereto. More spe- cifically, the hydroxide may be an anion of sodium hy- droxide. [0045] More specifically, the hydroxyl ion may be an anion of hydroxide salt produced as a byproduct during the extraction of lithium, because the cation of hydroxide salt has high solubility. [0046] In one embodiment of the present invention, the 5 10 15 20 25 30 35 40 45 50 55 4PDF Image | Patent Lithium European Patent Spec
