PDF Publication Title:
Text from PDF Page: 009

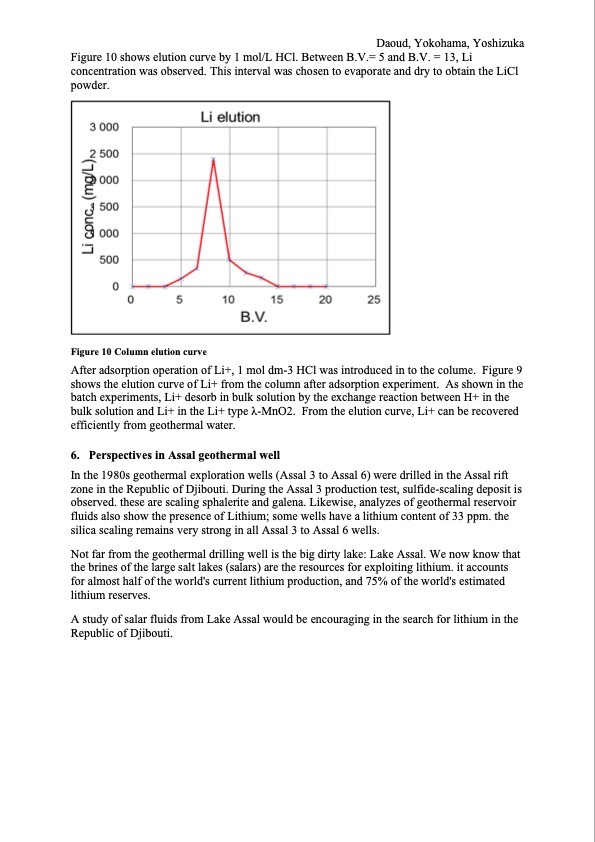

Daoud, Yokohama, Yoshizuka Figure 10 shows elution curve by 1 mol/L HCl. Between B.V.= 5 and B.V. = 13, Li concentration was observed. This interval was chosen to evaporate and dry to obtain the LiCl powder. Figure 10 Column elution curve After adsorption operation of Li+, 1 mol dm-3 HCl was introduced in to the colume. Figure 9 shows the elution curve of Li+ from the column after adsorption experiment. As shown in the batch experiments, Li+ desorb in bulk solution by the exchange reaction between H+ in the bulk solution and Li+ in the Li+ type λ-MnO2. From the elution curve, Li+ can be recovered efficiently from geothermal water. 6. Perspectives in Assal geothermal well In the 1980s geothermal exploration wells (Assal 3 to Assal 6) were drilled in the Assal rift zone in the Republic of Djibouti. During the Assal 3 production test, sulfide-scaling deposit is observed. these are scaling sphalerite and galena. Likewise, analyzes of geothermal reservoir fluids also show the presence of Lithium; some wells have a lithium content of 33 ppm. the silica scaling remains very strong in all Assal 3 to Assal 6 wells. Not far from the geothermal drilling well is the big dirty lake: Lake Assal. We now know that the brines of the large salt lakes (salars) are the resources for exploiting lithium. it accounts for almost half of the world's current lithium production, and 75% of the world's estimated lithium reserves. A study of salar fluids from Lake Assal would be encouraging in the search for lithium in the Republic of Djibouti.PDF Image | Recovery of Lithium from Geothermal Water
PDF Search Title:
Recovery of Lithium from Geothermal WaterOriginal File Name Searched:
Daoud, Yoshizuka - 2020 - A Study on Recovery of Lithium from Geothermal Water and Study of Assal geothermal field.pdfDIY PDF Search: Google It | Yahoo | Bing
