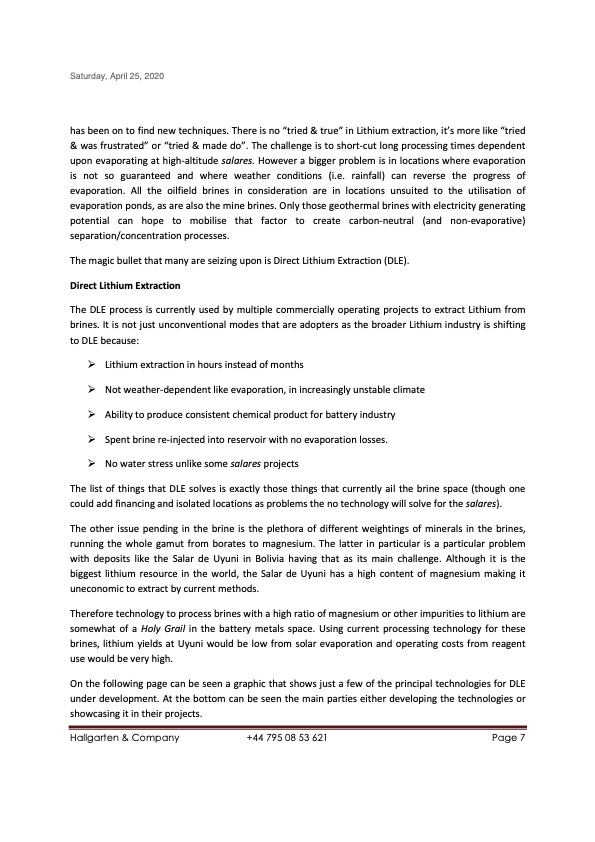

Text from PDF Page: 008
Saturday, April 25, 2020 has been on to find new techniques. There is no “tried & true” in Lithium extraction, it’s more like “tried & was frustrated” or “tried & made do”. The challenge is to short-cut long processing times dependent upon evaporating at high-altitude salares. However a bigger problem is in locations where evaporation is not so guaranteed and where weather conditions (i.e. rainfall) can reverse the progress of evaporation. All the oilfield brines in consideration are in locations unsuited to the utilisation of evaporation ponds, as are also the mine brines. Only those geothermal brines with electricity generating potential can hope to mobilise that factor to create carbon-neutral (and non-evaporative) separation/concentration processes. The magic bullet that many are seizing upon is Direct Lithium Extraction (DLE). Direct Lithium Extraction The DLE process is currently used by multiple commercially operating projects to extract Lithium from brines. It is not just unconventional modes that are adopters as the broader Lithium industry is shifting to DLE because: Lithium extraction in hours instead of months Not weather-dependent like evaporation, in increasingly unstable climate Ability to produce consistent chemical product for battery industry Spent brine re-injected into reservoir with no evaporation losses. No water stress unlike some salares projects The list of things that DLE solves is exactly those things that currently ail the brine space (though one could add financing and isolated locations as problems the no technology will solve for the salares). The other issue pending in the brine is the plethora of different weightings of minerals in the brines, running the whole gamut from borates to magnesium. The latter in particular is a particular problem with deposits like the Salar de Uyuni in Bolivia having that as its main challenge. Although it is the biggest lithium resource in the world, the Salar de Uyuni has a high content of magnesium making it uneconomic to extract by current methods. Therefore technology to process brines with a high ratio of magnesium or other impurities to lithium are somewhat of a Holy Grail in the battery metals space. Using current processing technology for these brines, lithium yields at Uyuni would be low from solar evaporation and operating costs from reagent use would be very high. On the following page can be seen a graphic that shows just a few of the principal technologies for DLE under development. At the bottom can be seen the main parties either developing the technologies or showcasing it in their projects. Hallgarten & Company +44 795 08 53 621 Page 7PDF Image | Unconventional Lithium from Brine
