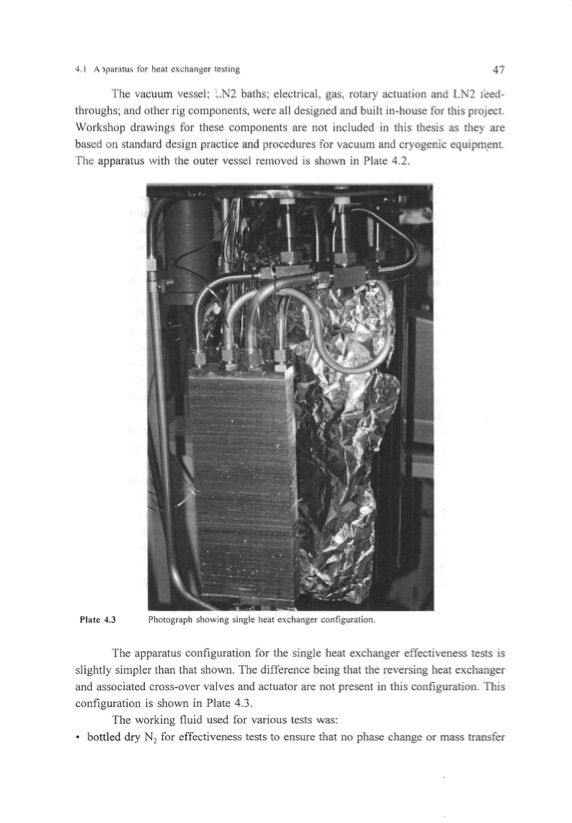

4. 1 A )paratus for heat exchanger testing 47 The vacuum vessel~ -:~N2 baths; electrical, gas, rotary actuation and LN2 feed- throughs; and other rig components, were all designed and built in-house for this project. Workshop drawings for these con1ponents are not included in this thesis as they are based on standard design practice and procedures for vacuum and cryogenic equiPlTI.ent. The apparatus with the outer vessel removed is shown in Plate 4.2. Plate 4.3 Photograph showing single heat exchanger configuration. The apparatus configuration for the single heat exchanger effectiveness tests is slightly simpler than that shown. The difference being that the reversing heat exchanger and associated cross-over valves and actuator are not present in this configuration. This configuration is shown in Plate 4.3. The \Norking fluid used for various tests 'was: " bottled dry N2 for effectiveness tests to ensure that no phase change or mass transferPDF Image | CO2 removal from air for alkaline fuel cells operating with liquid H2
