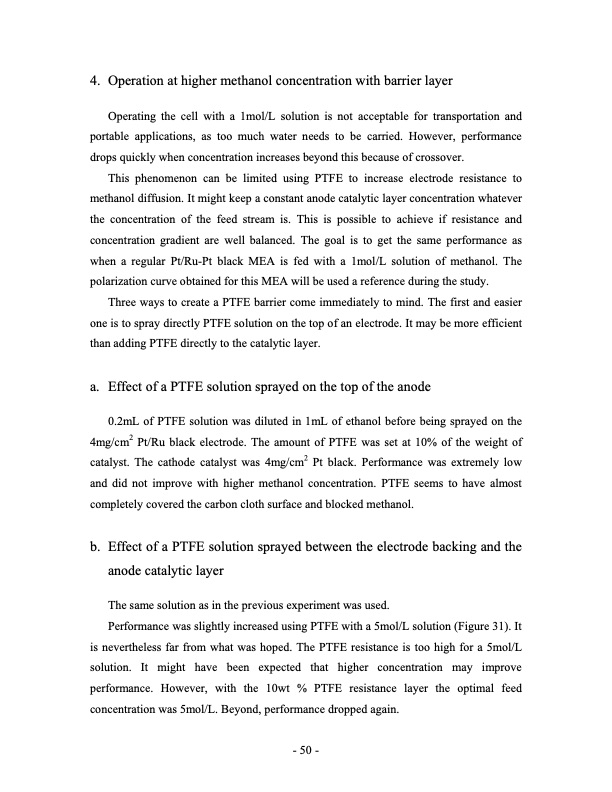

4. Operation at higher methanol concentration with barrier layer Operating the cell with a 1mol/L solution is not acceptable for transportation and portable applications, as too much water needs to be carried. However, performance drops quickly when concentration increases beyond this because of crossover. This phenomenon can be limited using PTFE to increase electrode resistance to methanol diffusion. It might keep a constant anode catalytic layer concentration whatever the concentration of the feed stream is. This is possible to achieve if resistance and concentration gradient are well balanced. The goal is to get the same performance as when a regular Pt/Ru-Pt black MEA is fed with a 1mol/L solution of methanol. The polarization curve obtained for this MEA will be used a reference during the study. Three ways to create a PTFE barrier come immediately to mind. The first and easier one is to spray directly PTFE solution on the top of an electrode. It may be more efficient than adding PTFE directly to the catalytic layer. a. EffectofaPTFEsolutionsprayedonthetopoftheanode 0.2mL of PTFE solution was diluted in 1mL of ethanol before being sprayed on the 4mg/cm2 Pt/Ru black electrode. The amount of PTFE was set at 10% of the weight of catalyst. The cathode catalyst was 4mg/cm2 Pt black. Performance was extremely low and did not improve with higher methanol concentration. PTFE seems to have almost completely covered the carbon cloth surface and blocked methanol. b. Effect of a PTFE solution sprayed between the electrode backing and the anode catalytic layer The same solution as in the previous experiment was used. Performance was slightly increased using PTFE with a 5mol/L solution (Figure 31). It is nevertheless far from what was hoped. The PTFE resistance is too high for a 5mol/L solution. It might have been expected that higher concentration may improve performance. However, with the 10wt % PTFE resistance layer the optimal feed concentration was 5mol/L. Beyond, performance dropped again. - 50 -PDF Image | Direct Methanol Fuel Cell (DMFC) Performance
