PDF Publication Title:
Text from PDF Page: 005

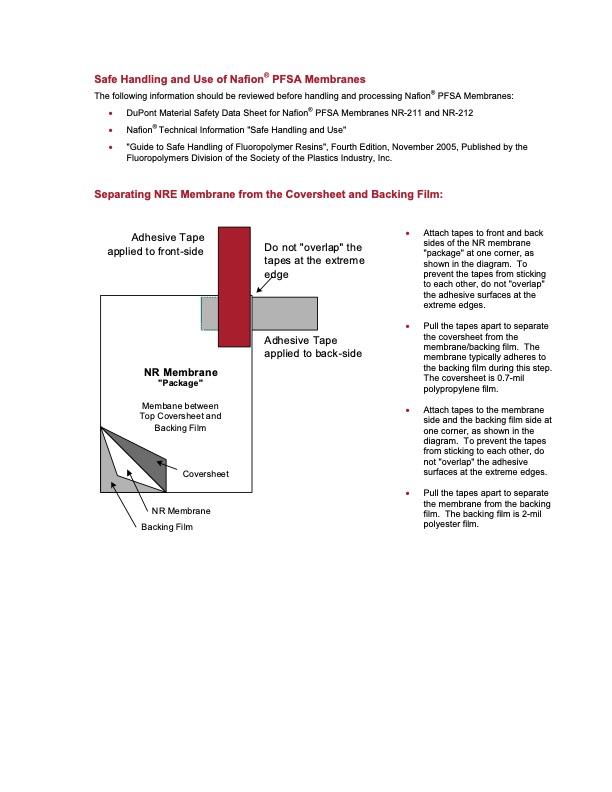

Safe Handling and Use of Nafion® PFSA Membranes The following information should be reviewed before handling and processing Nafion® PFSA Membranes: • DuPont Material Safety Data Sheet for Nafion® PFSA Membranes NR-211 and NR-212 • Nafion® Technical Information "Safe Handling and Use" • "Guide to Safe Handling of Fluoropolymer Resins", Fourth Edition, November 2005, Published by the Fluoropolymers Division of the Society of the Plastics Industry, Inc. Separating NRE Membrane from the Coversheet and Backing Film: Adhesive Tape applied to front-side Do not "overlap" the tapes at the extreme edge Adhesive Tape applied to back-side • • • • Attach tapes to front and back sides of the NR membrane "package" at one corner, as shown in the diagram. To prevent the tapes from sticking to each other, do not "overlap" the adhesive surfaces at the extreme edges. Pull the tapes apart to separate the coversheet from the membrane/backing film. The membrane typically adheres to the backing film during this step. The coversheet is 0.7-mil polypropylene film. Attach tapes to the membrane side and the backing film side at one corner, as shown in the diagram. To prevent the tapes from sticking to each other, do not "overlap" the adhesive surfaces at the extreme edges. Pull the tapes apart to separate the membrane from the backing film. The backing film is 2-mil polyester film. NR Membrane "Package" Membane between Top Coversheet and Backing Film Coversheet NR Membrane Backing FilmPDF Image | DuPont Nafion PFSA NR-211 and NR-212 membranes
