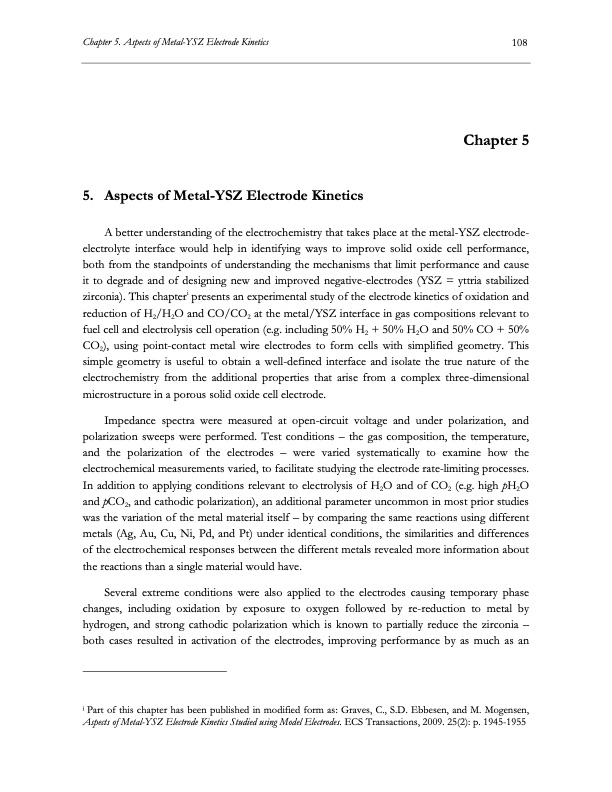

Chapter 5. Aspects of Metal-YSZ Electrode Kinetics 108 5. Aspects of Metal-YSZ Electrode Kinetics A better understanding of the electrochemistry that takes place at the metal-YSZ electrode- electrolyte interface would help in identifying ways to improve solid oxide cell performance, both from the standpoints of understanding the mechanisms that limit performance and cause it to degrade and of designing new and improved negative-electrodes (YSZ = yttria stabilized zirconia). This chapteri presents an experimental study of the electrode kinetics of oxidation and reduction of H2/H2O and CO/CO2 at the metal/YSZ interface in gas compositions relevant to fuel cell and electrolysis cell operation (e.g. including 50% H2 + 50% H2O and 50% CO + 50% CO2), using point-contact metal wire electrodes to form cells with simplified geometry. This simple geometry is useful to obtain a well-defined interface and isolate the true nature of the electrochemistry from the additional properties that arise from a complex three-dimensional microstructure in a porous solid oxide cell electrode. Impedance spectra were measured at open-circuit voltage and under polarization, and polarization sweeps were performed. Test conditions – the gas composition, the temperature, and the polarization of the electrodes – were varied systematically to examine how the electrochemical measurements varied, to facilitate studying the electrode rate-limiting processes. In addition to applying conditions relevant to electrolysis of H2O and of CO2 (e.g. high pH2O and pCO2, and cathodic polarization), an additional parameter uncommon in most prior studies was the variation of the metal material itself – by comparing the same reactions using different metals (Ag, Au, Cu, Ni, Pd, and Pt) under identical conditions, the similarities and differences of the electrochemical responses between the different metals revealed more information about the reactions than a single material would have. Several extreme conditions were also applied to the electrodes causing temporary phase changes, including oxidation by exposure to oxygen followed by re-reduction to metal by hydrogen, and strong cathodic polarization which is known to partially reduce the zirconia – both cases resulted in activation of the electrodes, improving performance by as much as an i Part of this chapter has been published in modified form as: Graves, C., S.D. Ebbesen, and M. Mogensen, Aspects of Metal-YSZ Electrode Kinetics Studied using Model Electrodes. ECS Transactions, 2009. 25(2): p. 1945-1955 Chapter 5PDF Image | Electrolysis of CO2 and H2O
