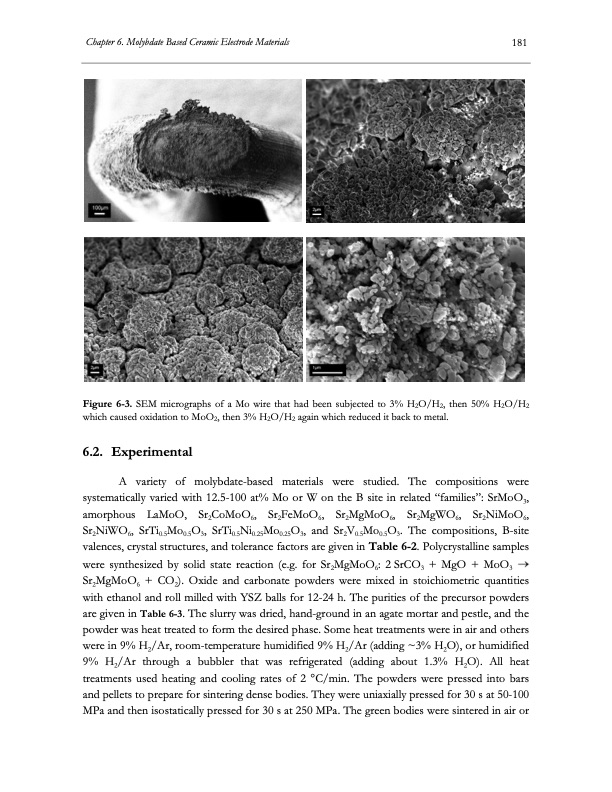

Chapter 6. Molybdate Based Ceramic Electrode Materials 181 Figure 6-3. SEM micrographs of a Mo wire that had been subjected to 3% H2O/H2, then 50% H2O/H2 which caused oxidation to MoO2, then 3% H2O/H2 again which reduced it back to metal. 6.2. Experimental A variety of molybdate-based materials were studied. The compositions were systematically varied with 12.5-100 at% Mo or W on the B site in related ―families‖: SrMoO3, amorphous LaMoO, Sr2CoMoO6, Sr2FeMoO6, Sr2MgMoO6, Sr2MgWO6, Sr2NiMoO6, Sr2NiWO6, SrTi0.5Mo0.5O3, SrTi0.5Ni0.25Mo0.25O3, and Sr2V0.5Mo0.5O3. The compositions, B-site valences, crystal structures, and tolerance factors are given in Table 6-2. Polycrystalline samples were synthesized by solid state reaction (e.g. for Sr2MgMoO6: 2 SrCO3 + MgO + MoO3 Sr2MgMoO6 + CO2). Oxide and carbonate powders were mixed in stoichiometric quantities with ethanol and roll milled with YSZ balls for 12-24 h. The purities of the precursor powders are given in Table 6-3. The slurry was dried, hand-ground in an agate mortar and pestle, and the powder was heat treated to form the desired phase. Some heat treatments were in air and others were in 9% H2/Ar, room-temperature humidified 9% H2/Ar (adding ~3% H2O), or humidified 9% H2/Ar through a bubbler that was refrigerated (adding about 1.3% H2O). All heat treatments used heating and cooling rates of 2 °C/min. The powders were pressed into bars and pellets to prepare for sintering dense bodies. They were uniaxially pressed for 30 s at 50-100 MPa and then isostatically pressed for 30 s at 250 MPa. The green bodies were sintered in air orPDF Image | Electrolysis of CO2 and H2O
