PDF Publication Title:
Text from PDF Page: 049

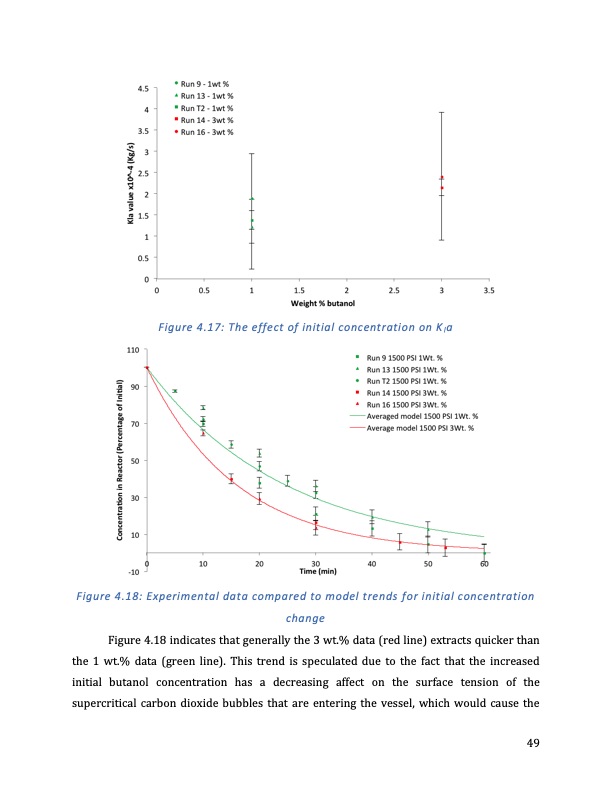

Figure 4.17: The effect of initial concentration on Kla Figure 4.18: Experimental data compared to model trends for initial concentration change Figure 4.18 indicates that generally the 3 wt.% data (red line) extracts quicker than the 1 wt.% data (green line). This trend is speculated due to the fact that the increased initial butanol concentration has a decreasing affect on the surface tension of the supercritical carbon dioxide bubbles that are entering the vessel, which would cause the 49PDF Image | Extraction of Bio-Butanol using Supercritical Carbon Dioxide
PDF Search Title:
Extraction of Bio-Butanol using Supercritical Carbon DioxideOriginal File Name Searched:
MQP_FINAL_REPORT.pdfDIY PDF Search: Google It | Yahoo | Bing
