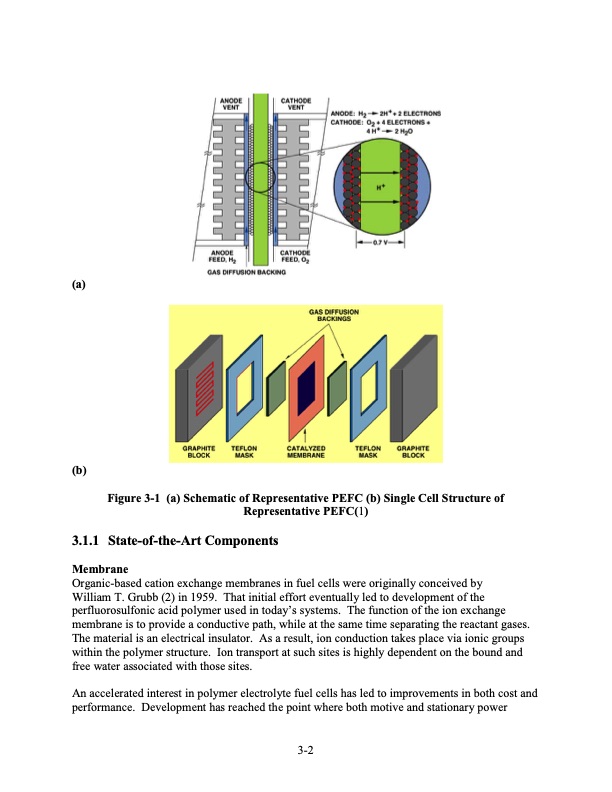

(a) (b) Figure 3-1 (a) Schematic of Representative PEFC (b) Single Cell Structure of Representative PEFC(1) 3.1.1 State-of-the-ArtComponents Membrane Organic-based cation exchange membranes in fuel cells were originally conceived by William T. Grubb (2) in 1959. That initial effort eventually led to development of the perfluorosulfonic acid polymer used in today’s systems. The function of the ion exchange membrane is to provide a conductive path, while at the same time separating the reactant gases. The material is an electrical insulator. As a result, ion conduction takes place via ionic groups within the polymer structure. Ion transport at such sites is highly dependent on the bound and free water associated with those sites. An accelerated interest in polymer electrolyte fuel cells has led to improvements in both cost and performance. Development has reached the point where both motive and stationary power 3-2PDF Image | Fuel Cell Handbook (Seventh Edition)
