PDF Publication Title:

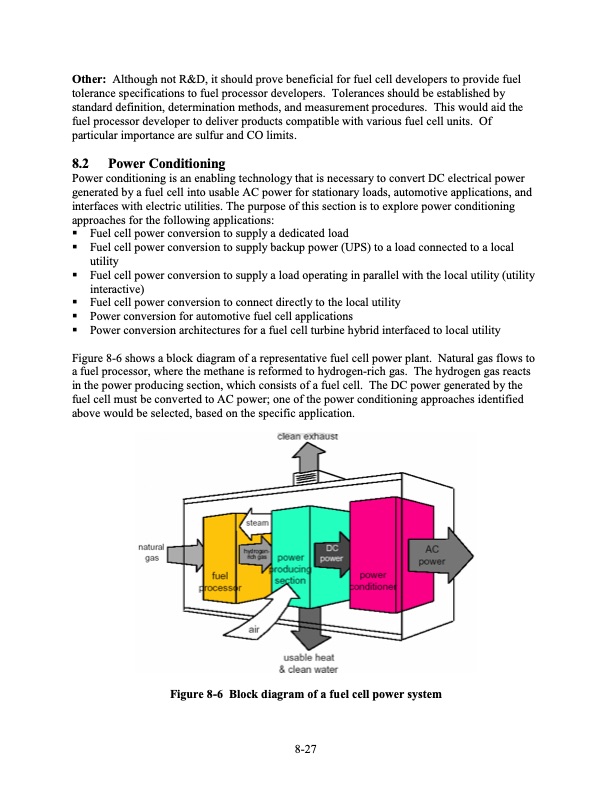

Text from PDF Page: 272
Other: Although not R&D, it should prove beneficial for fuel cell developers to provide fuel tolerance specifications to fuel processor developers. Tolerances should be established by standard definition, determination methods, and measurement procedures. This would aid the fuel processor developer to deliver products compatible with various fuel cell units. Of particular importance are sulfur and CO limits. 8.2 Power Conditioning Power conditioning is an enabling technology that is necessary to convert DC electrical power generated by a fuel cell into usable AC power for stationary loads, automotive applications, and interfaces with electric utilities. The purpose of this section is to explore power conditioning approaches for the following applications: Fuel cell power conversion to supply a dedicated load Fuel cell power conversion to supply backup power (UPS) to a load connected to a local utility Fuel cell power conversion to supply a load operating in parallel with the local utility (utility interactive) Fuel cell power conversion to connect directly to the local utility Power conversion for automotive fuel cell applications Power conversion architectures for a fuel cell turbine hybrid interfaced to local utility Figure 8-6 shows a block diagram of a representative fuel cell power plant. Natural gas flows to a fuel processor, where the methane is reformed to hydrogen-rich gas. The hydrogen gas reacts in the power producing section, which consists of a fuel cell. The DC power generated by the fuel cell must be converted to AC power; one of the power conditioning approaches identified above would be selected, based on the specific application. Figure 8-6 Block diagram of a fuel cell power system 8-27PDF Image | Fuel Cell Handbook (Seventh Edition)
